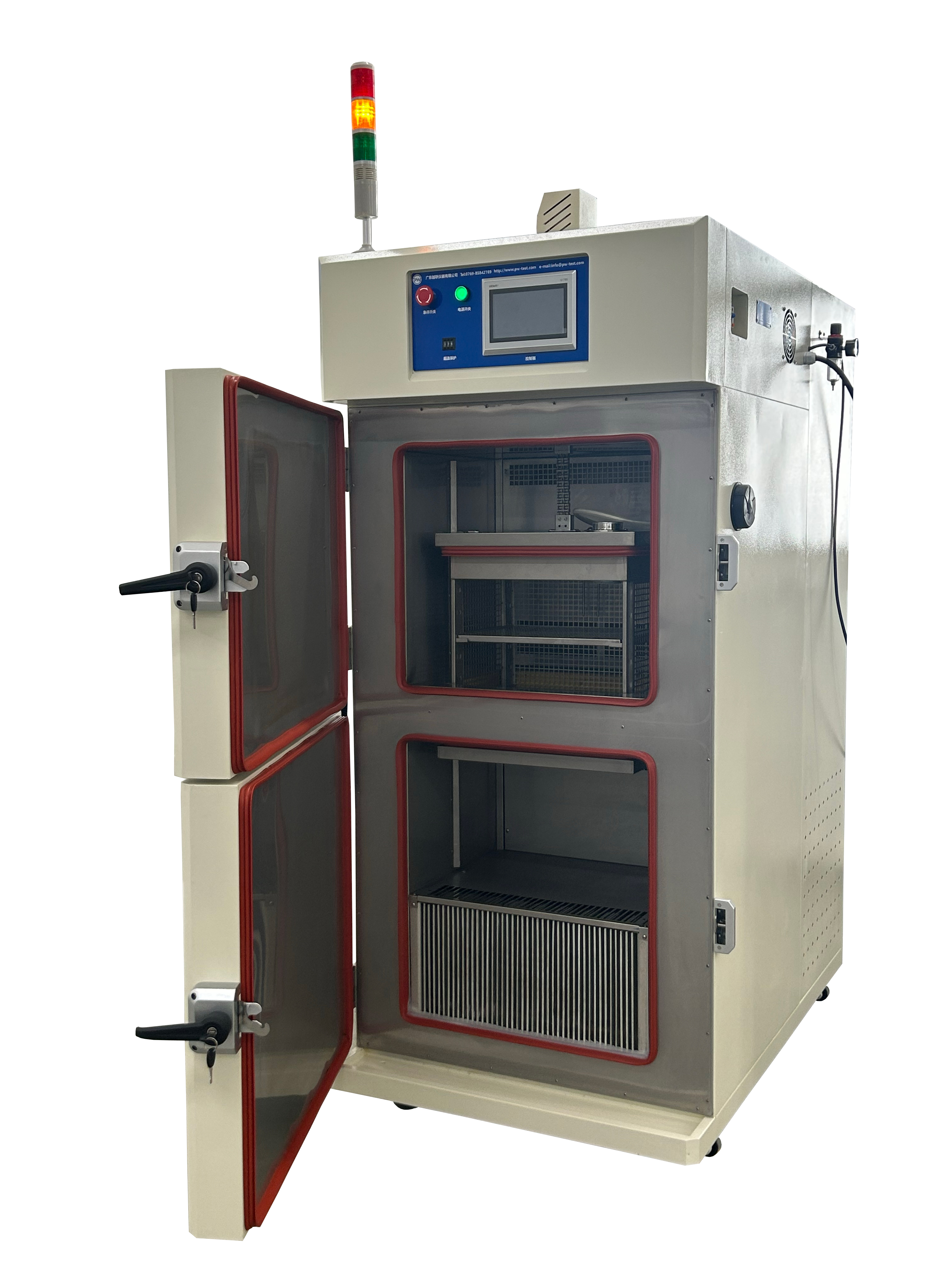

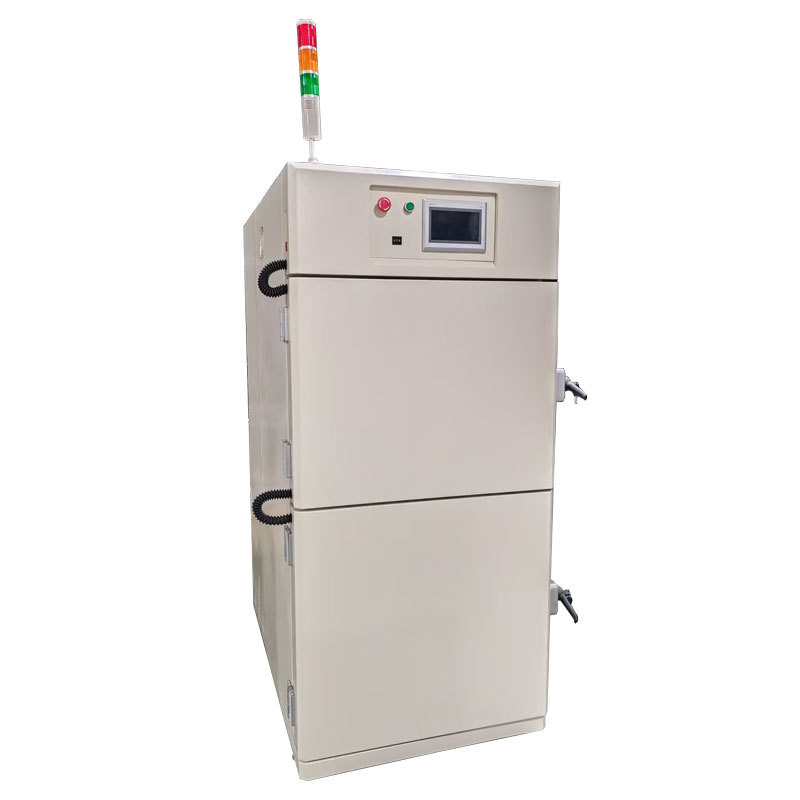

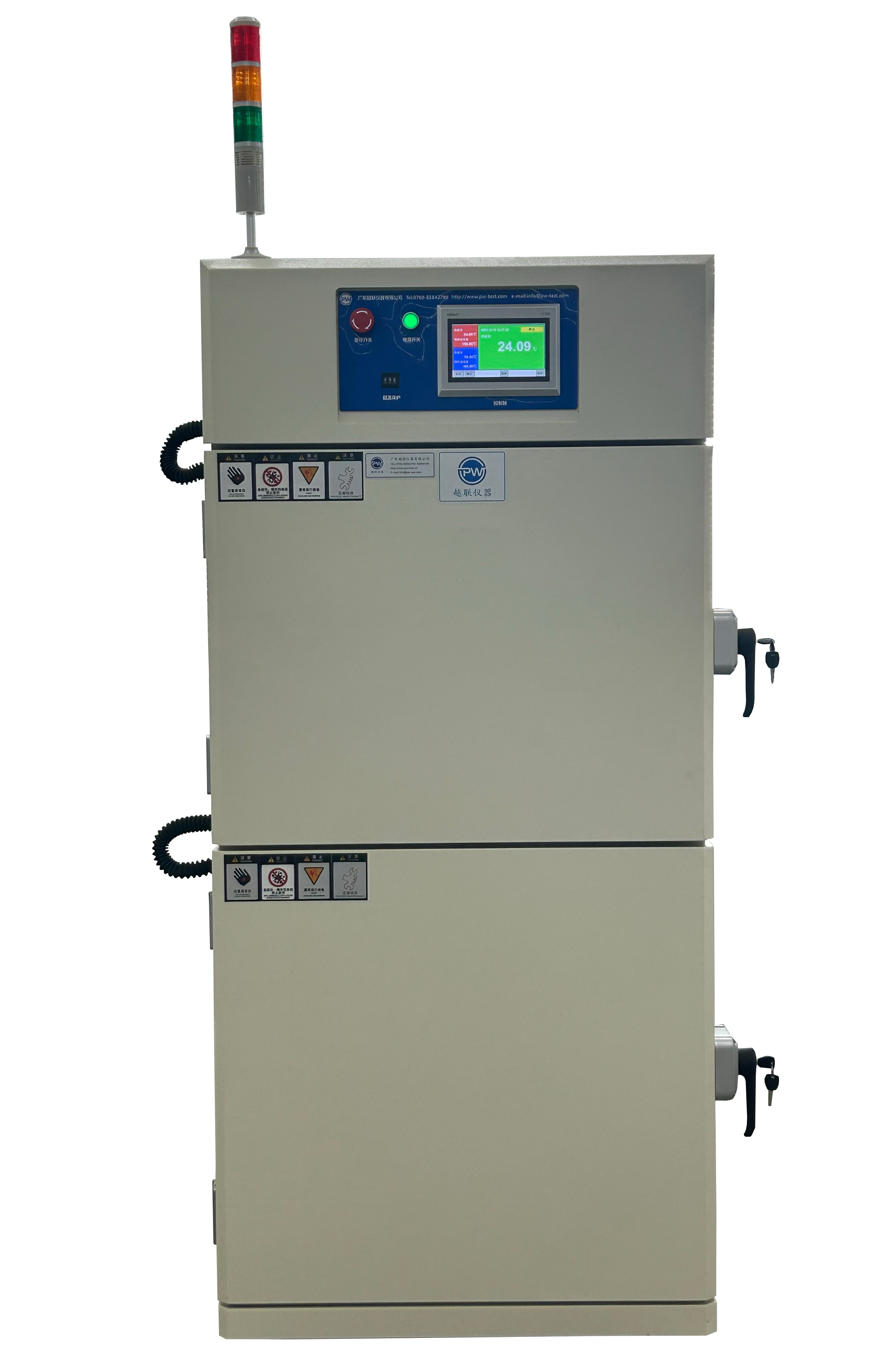

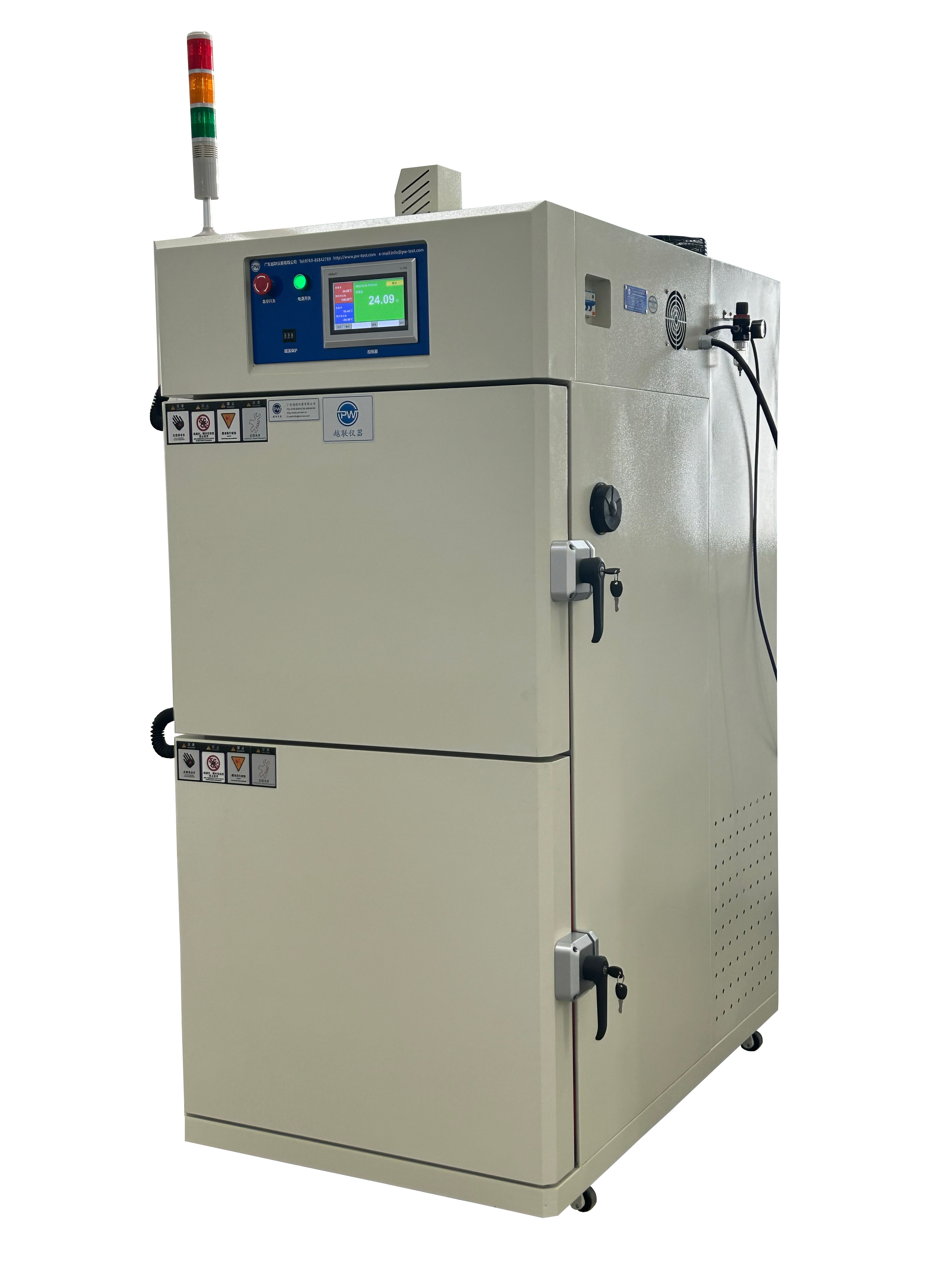

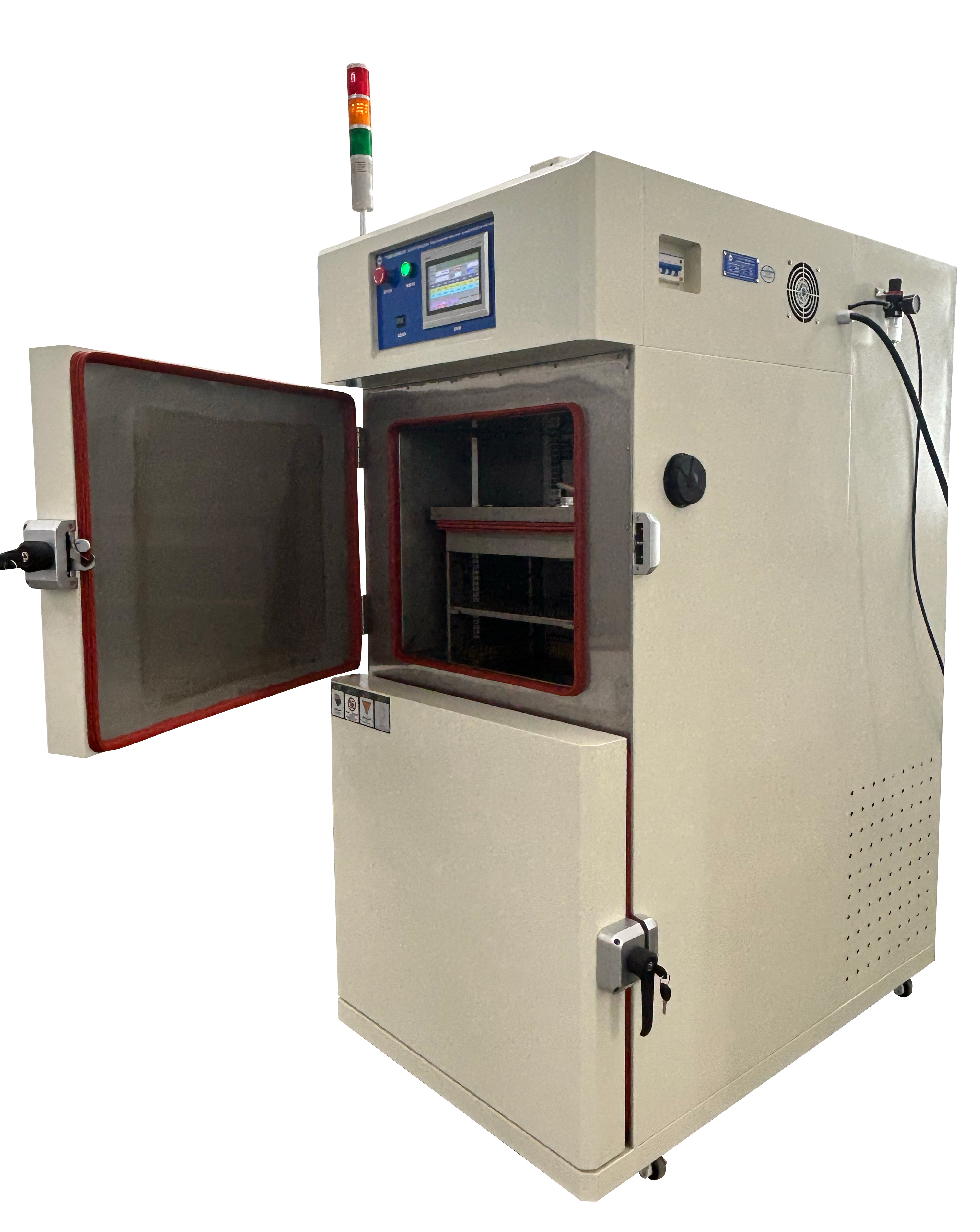

36L small hot and cold shock test chamber for material testing. It is widely used in product R&D testing due to its small size and low energy consumption.36L small hot and cold shock test chamber for material testing. It is widely used in product R&D testing due to its small size and low energy consumption.
PW-CTS2-36-40A R & D two-box air-cooled thermal shock test chamber is launched for the materials research and development sector 36L small cold and thermal shock test chamber, self-research temperature balance technology, different from the traditional use of high-power refrigeration against high-power heating freezing balance technology.Take the on-off refrigeration energy regulation technology - central controller according to the different temperature points to control the size of the cooling capacity to achieve temperature static balance, while allowing the operation of equipment is always in a relatively low-power state, energy saving and environmental protection.
Performance: (air-cooled, refers to the room temperature at +25 ℃, no load)
1. High temperature tank impact range: +40 ℃ ~ +150 ℃ 2. Low temperature tank impact range: -10 ℃ ~ -55 ℃ 3.Temperature uniformity: ≤±2℃ 4. Temperature fluctuation: ≤ ± 0.5℃. 5. High and low temperature shock constant temperature time: 5 min 6. Basket transfer time: within 5 seconds (Temperature performance test is measured according to the relevant provisions of IEC60068-3 standard; the sensor is placed at the unit air outlet)
