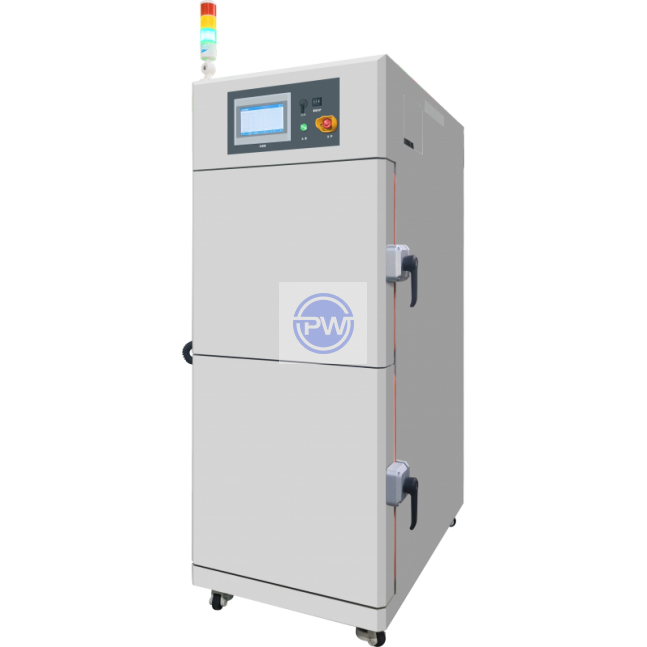

PW-CTS2-19-55A R & D two-box air-cooled thermal shock test chamber is launched for the materials research and development sector 19L small cold and thermal shock test chamber, self-research temperature balance technology, different from the traditional use of high-power refrigeration against high-power heating freezing balance technology.
Take the on-off refrigeration energy regulation technology - central controller according to the different temperature points to control the size of the cooling capacity to achieve temperature static balance, while allowing the operation of equipment is always in a relatively low-power state, energy saving and environmental protection.
Performance: (air-cooled, refers to the room temperature at +25 ℃, no load)
1. High temperature tank impact range: +40 ℃ ~ +150 ℃
2. Low temperature tank impact range: -10 ℃ ~ -55 ℃
3.Temperature uniformity: ≤±2℃
4. Temperature fluctuation: ≤ ± 0.5℃.
5. High and low temperature shock constant temperature time: 5 min
6. Basket transfer time: within 5 seconds
(Temperature performance test is measured according to the relevant provisions of IEC60068-3 standard; the sensor is placed at the unit air outlet)
