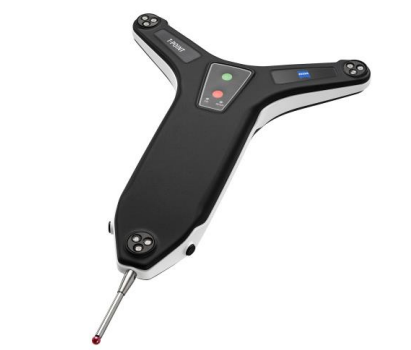

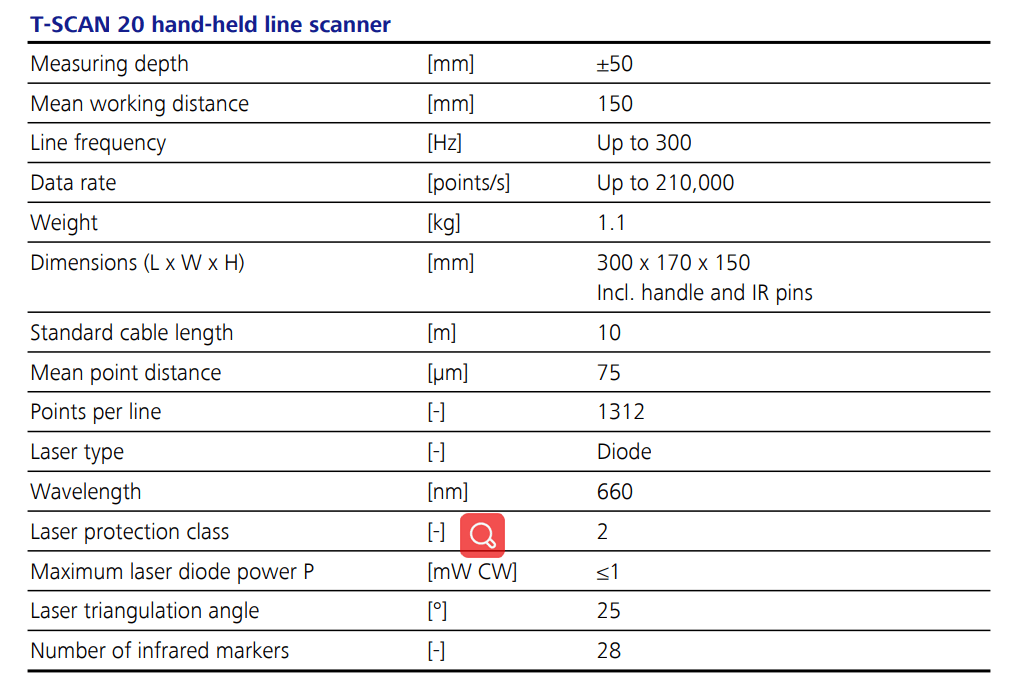

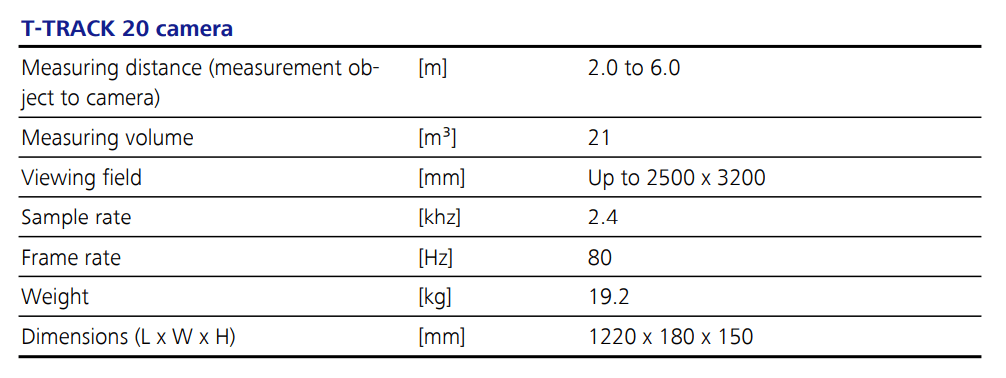

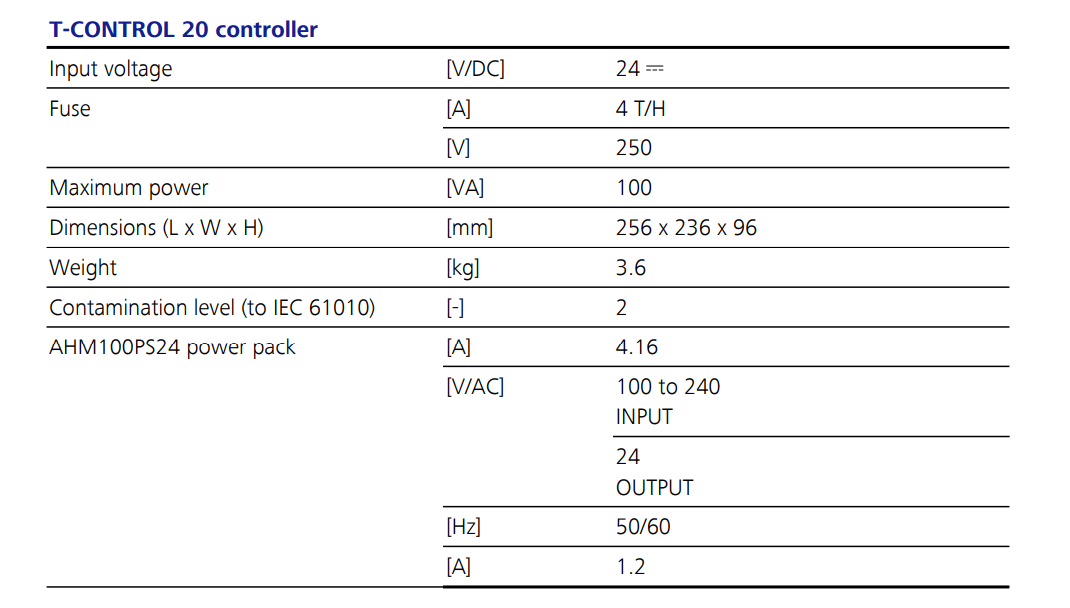

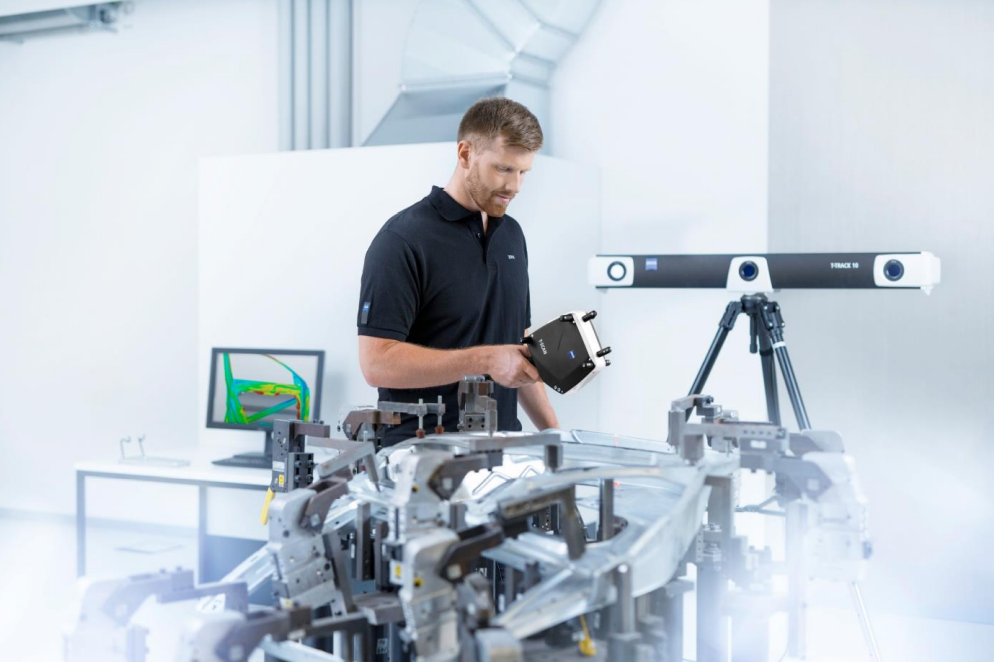

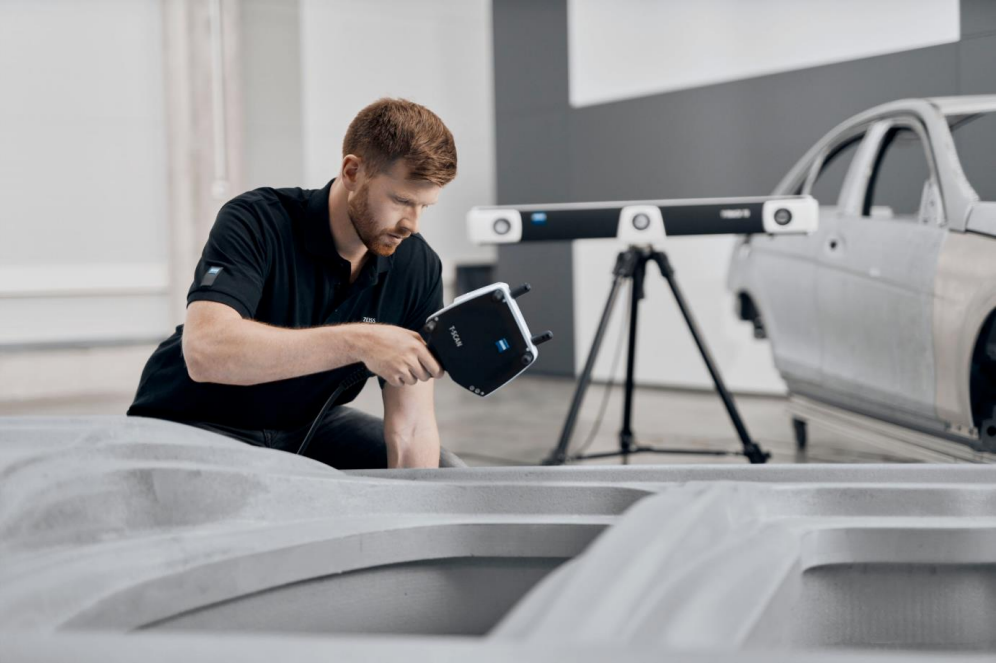

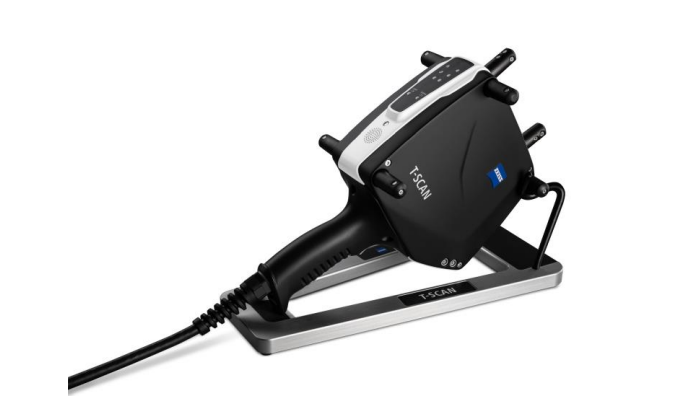

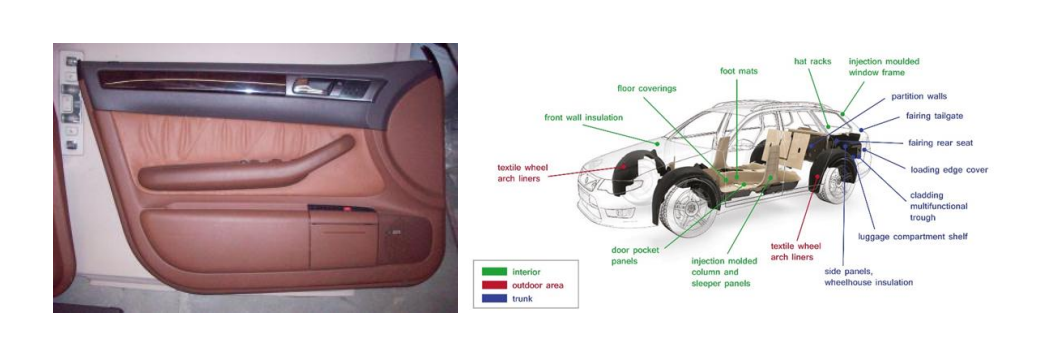

It’s the perfect solution for single-point measurements on object areas such as trimmed edges and standard geometrics or optically hard-to-reach areas.

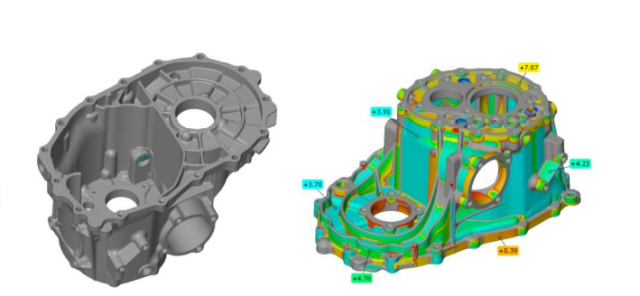

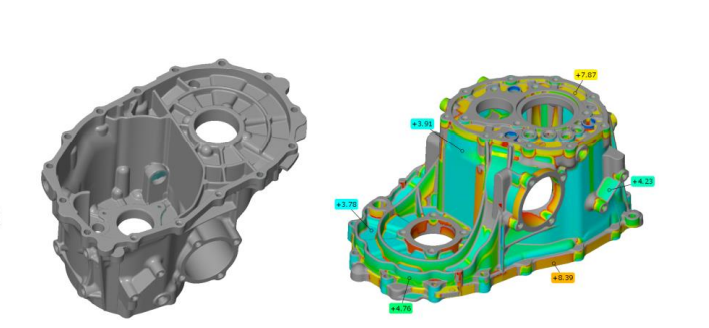

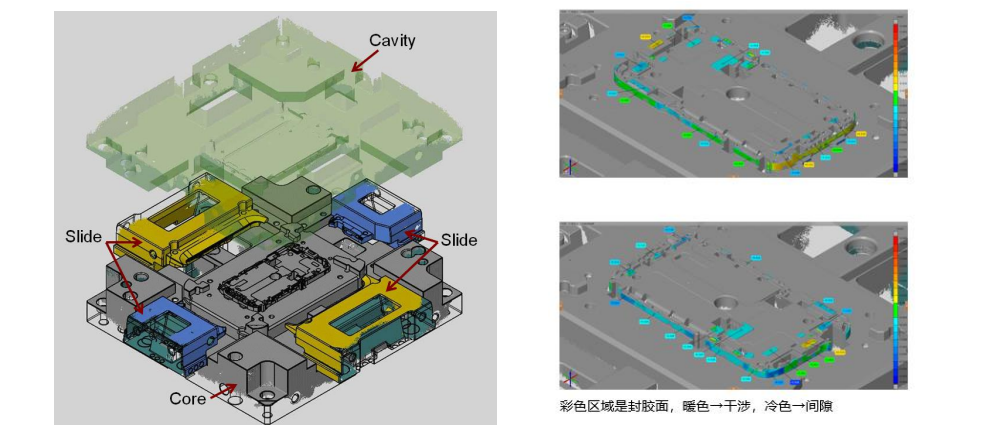

GOM Professional Software • Setup and Calibration • Administration of measuring fields and sensor configurations • Software-supported sensor adjustment • User-guided calibration • Measuring data acquisition and project administration • Graphic interface for live control of image acquisition • Online display of sensor position and live image mapping • Complete calculation of 3D coordinates • Transformation of single measurements into a common coordinate system via reference points or surface best-fit • Project-oriented management of measurements • Automatic computation and export of non-overlapping polygon meshes • Export of scan data (e.g. G3D format, STL format) • Creation and processing of polygon meshes • Import of point clouds and polygon meshes (STL, ASCII, POL, PLY, PSL, etc.) • Processing and visualization of common CT volume data (e.g. VGI, VGL, PCR, EXV, REK and native raw data) • Polygonization of random point clouds into polygon meshes • Filling of holes in the polygon mesh by interpolated freeform surfaces • Smoothing, thinning and refining of polygon meshes • Regularization and relaxation of polygon meshes • Repairing, combining and stitching of mesh areas • Inverting, offsetting and scaling of polygon meshes • Tracing and evaluation of curvatures and character lines • Export of 3D polygon meshes (ASCII, POL or STL) • Golden Mesh: Calculation of an average mesh based on series measurements • Element construction • Creation of geometrical elements on CAD data, polygon meshes and components • Construction of equidistant multiple points on areas or along curves • Fitting elements (maximum inscribed and maximum circumscribed elements, Gaussian and Chebyshev methods) • Multisections (axis parallel, radial, along curves and in viewing direction) • Derivation of characteristic features for airfoils from profile sections • Distances, angles, virtual calipers • Intersection, projection (perpendicular or free defined), average • Measurement plan import (ASCII, CSV, FTA, CATIA List, …) • Alignment • Automatic prealignment via CAD or reference point clouds • Manual prealignment via 3D points • Alignment via 3-2-1, best-fit, RPS, local coordinate systems, hierarchically ordered elements • Hierarchical order of various alignments • Easy switching between the created alignments • Compensation of rigid body motions in stage projects • Inspection • Import of CAD data in standard formats: IGES, VDA, STEP, JT Open, STL, PLY • Import of CAD data in special formats: CATIA v4/v5/v6, NX/UG, Pro/E, Parasolid, SAT • Automatic pre-alignment against CAD without 3D interaction • Alignment by 3-2-1, Best-Fit, RPS, local coordinate systems • Definition of tolerances for CAD data and geometric elements • Nominal/actual comparison of polygon meshes and point clouds with CAD data • Deviation representation with color plots using free defined legends • Colored inspection sections with needle plots • Full-surface computation of material thickness based on polygon meshes • Calculation of local surface defects based on polygon meshes • I-Inspect: Simple assignment of measuring principles and inspection instructions • Dimensioning based on local coordinate systems • Evaluation of GD&T according to ISO GPS and ASME Y14.5 • Complete traceability of constructions and evaluations • Stage management with timeline • Convenient stage management with adjustable reference stage • Transfer of evaluations from one stage to all stages • Global orientation and stage coupling • Definition of point components with automatic identification • Automatic computation of 3D displacement vectors • Statistical process control of full-field and point-based features • Diagram representation of characteristics via stage index or time • Determination of values derived by time, such as speed and acceleration • Digital assembly • Management of several individual part evaluations in one common project • Local alignments between individual parts for assembly optimization • Determination of functional dimensions between parts • Calculation and visualization of gap size and offset • Report module • Customized templates with logos and text boxes • Master page concept for uniform report styles • Customized measuring point visualization: Labels, needle plots etc. • Online tables and diagrams for sections and time-related values • Parametric integration of stages and alignments • Image mapping: Overlay of 2D and 3D data • Visualization of stage evaluations as video sequence or flip book • Presentation mode • Export as CSV table, PNG, PDF or video file • Integrated GOM parametrics • Replacement of measuring data in projects, stages and parts with recalculation • Adding of new stages (timeline) and new parts (digital assembly) • Creation of project templates for recurring procedures • Scripting und Packages • Phython script engine • Integrated macro recording • Template management • Confection and versioning of user-defined scripts and settings Software and Application Support for GOM Inspect Suite with Sensor Driver ATOS for Essential Line • Online Support via GOM Forum • Online Knowledge Base providing tips and tricks for software and hardware as well application relevant workflows • Video-tutorials describing operation and workflows
