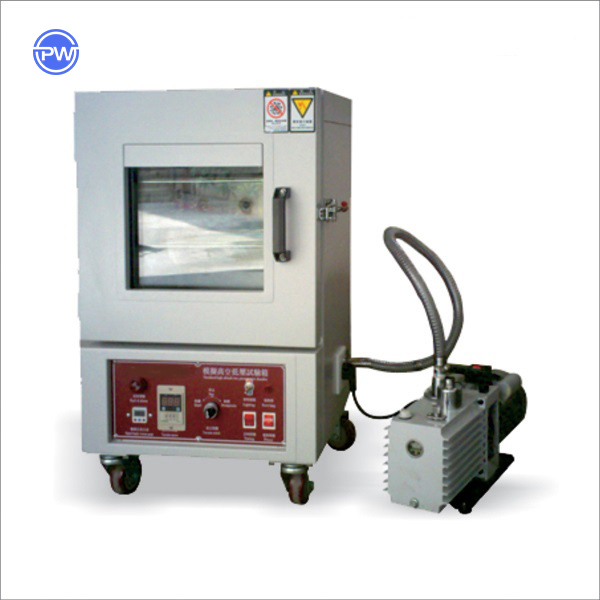

Name: Vacuum Drying Oven
Brand: Universal testing machine,Tensile tester,Climate test Chamber,test Cha
SKU: PW-CV2 series
Availability: InStock
Rating: 5 (1 reviews)

T/T FOB WOOD

SPECIFICATION

TV2 series vacuum ovens, models :TV2-27, TV2-64, TV2-125, TV2-216

Space

Inner box size:27L（W 30 ×D30×H30）cm；Carton size:（W 60×D 47 ×H80）cm；

Inner box size:64L（W40 ×D40×H40）cm；Carton size:（W70×D 57 ×H90）cm；

Inner box size:125L（W50 ×D50×H50）cm；Carton size:（W70×D70 ×H90）cm；

Inner box size:216L（W60 ×D60×H60）cm；Carton size:（W90 ×D 77 ×H110）cm

Structure

1. The box body is made of high-quality cold-rolled steel plate, and the surface is electrostatically powder sprayed. The coating is hard and firm, and has a strong anti-rust ability and is not corroded.
2. The inner box is made of high-quality stainless steel plate with a thickness of 6mm, rounded corners, smooth, smooth, and easy to clean.
3. The door is a double-layer tempered glass structure, which can clearly observe the test items in the box;
4. A rubber sealing ring is installed between the studio and the glass door to ensure a high vacuum in the box.

Vacuum oven heating system

1. Heating method: adopts two-sided heating heat radiation method
2. The heating material is high temperature resistant heating tube;
3. Temperature setting range: RT+10℃～250℃, freely set the temperature value you want; 4. Programmable thermostat: freely adjust the heating time to reach the required temperature;

Vacuum oven temperature control system

Using PID microcomputer automatic temperature control system, the temperature of the cabinet studio is sensed by the sensitive detection control head and fed back to the microcomputer. Through the automatic and fast program calculation of the microcomputer, the output power of the output terminal can be quickly and automatically adjusted to achieve precise control. At the precise value set.
