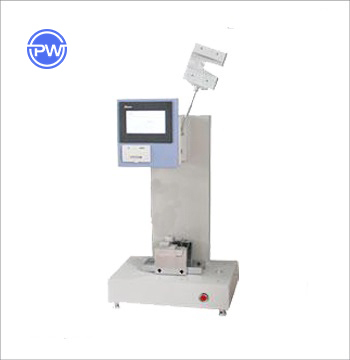

The digital display simply supported beam impact tester is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone, electrical insulation materials, etc. It is used in the chemical industry, scientific research institutions, universities and colleges, and quality inspections. Ideal test equipment for other departments.
This machine adopts Chinese and English contrast, touch screen display operation, PLC module control, can store 5 sample data and calculate the average value of impact strength, and realize dual printing of test reports in Chinese and English, simple operation and stable performance. This machine is currently one of the best alternatives to imported instruments in China. The main technical parameters of the simply supported beam impact testing machine are in full compliance with the requirements of GB/T 1043, JB/T 8762, IS0 179 and other standards.
The energy of this machine can be choosed when ordering, and the impact energy of simply supported beam is any impact pendulum of 7.5, 15, 25, 50J.
This machine has functions of angle measurement and zero-clearing; energy loss measurement and automatic compensation functions; automatic calculation of impact strength, standard deviation and other functions, and can print test reports in Chinese and English. High measurement accuracy and fast test speed
