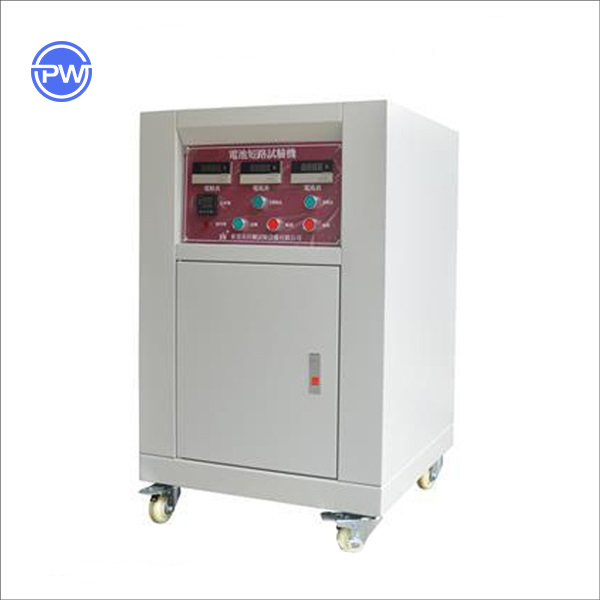

Name: Room Temperature Battery Short Circuit Tester
Brand: Universal testing machine,Tensile tester,Climate test Chamber,test Cha
SKU: PWB-902
Availability: InStock
Rating: 5 (1 reviews)

T/T FOB WOOD

SPECIFICATION

Use

The high-current short-circuit device is designed according to the requirements of various battery short-circuit test standards; according to the standard, the short-circuit device must be less than 5mΩ to obtain the maximum short-circuit current required by the test; in addition, the circuit design of the short-circuit device must also be able to withstand the impact of high current. Therefore, we will use industrial-grade DC electromagnetic contactors, all-copper terminals and internal copper plates for diversion. The built-in active ball axial fan provides effective heat dissipation protection, which makes the high-current short-circuit device safer, effectively reduces the loss of test equipment, and ensures the test The accuracy of the data. The judgment standard of the battery short-circuit test result is: the battery does not fire or explode as qualified.

Test purposes

The remote-control high-current short-circuit device is designed according to the requirements of various battery short-circuit test standards, and the short-circuit device must meet the internal resistance range of far less than 100mΩ to obtain the maximum short-circuit current required by the test.

Standards compliant

GB/T 18332.2-2009 Metal hydride nickel batteries for electric road vehicles
GB/Z 18333.1-2001 Lithium-ion battery for electric road vehicles
GB/Z 18333.2-2001 Zinc-air battery for electric road vehicles
QC/T 741-2006 Super capacitor for vehicle
QC/T 742-2006 Lead-acid batteries for electric vehicles
QC/T 743-2006 Lithium-ion battery for electric vehicles
QC/T 744-2006 Metal hydride nickel batteries for electric vehicles
Related standards for automotive power batteries International standards (ISO/IEC/SAE/JEVA/CEN, etc.), International Standards Association and "863 Program" electric vehicle major project related test specifications
QB/T 2947.3-2008 Battery and Charger for Electric Bicycle Part 3 DB12/T246-2005 Electric bicycle lithium battery test standard.
GB 19521.11-2005 Safety Code for Inspection of Dangerous Characteristics of Dangerous Goods of Lithium Battery Pack
