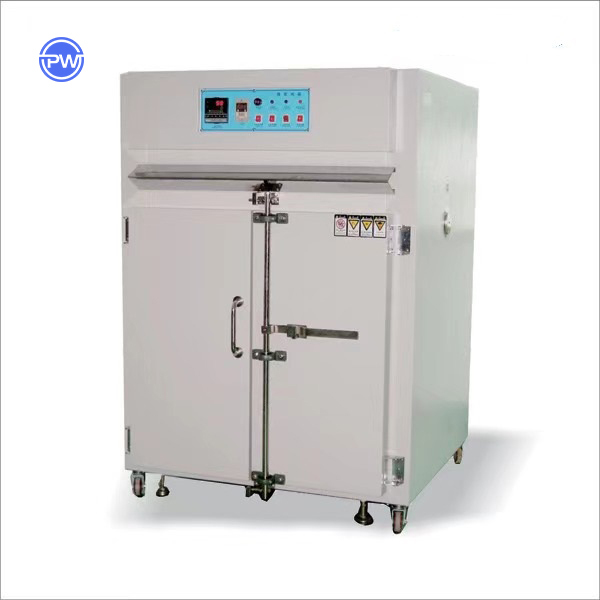

The precision oven is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories, scientific research units, etc.
Box size
1. Internal dimension: 100(W)×120(H)×80(D)±1cm;
2. External dimensions: 122(W)×178(H)×96(D)±1cm; take the actual product as the standard
3. The controller is located above the machine, and the double doors are opened from right to left;
4. The inner material is mirror-finished stainless steel with a thickness of 1.0mm;
5. The outer material is SECC steel plate thickness ≥1.2mm powder baking paint treatment;
6. The thermal insulation material is 100K high-density glass rock wool with a thickness of 100mm, which has good thermal insulation and maximizes the temperature insulation.
7. There are two layers inside, two stainless steel grid plates (mesh-shaped);
8. The tight material of anti-secret is high temperature resistant silicone strip;
9. No glass window;
10. Equipped with movable casters and fixed feet.
Supply unit
Voltage: 380V three-phase power: 8KW
