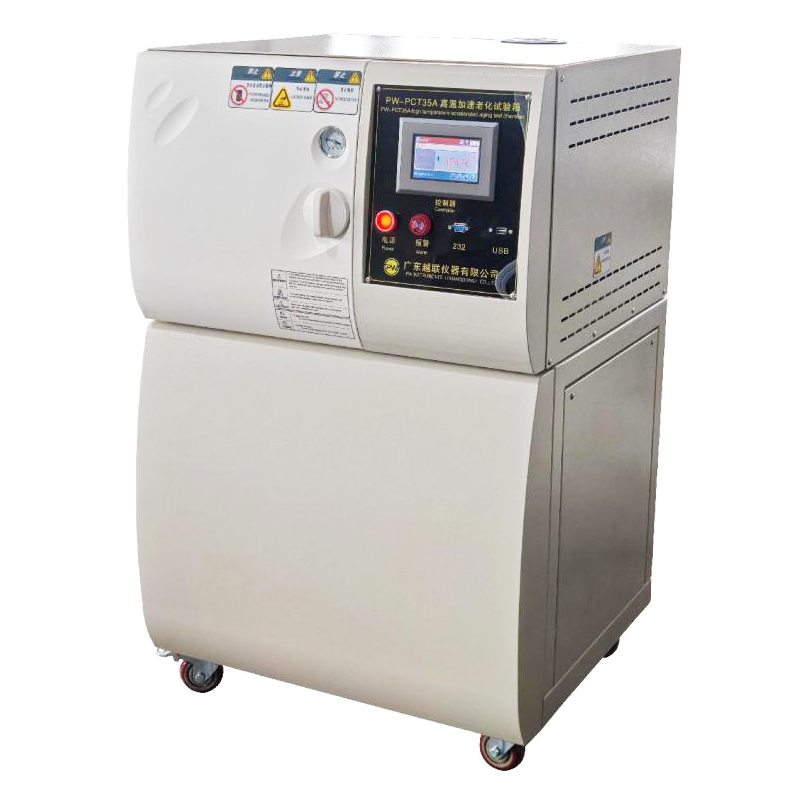

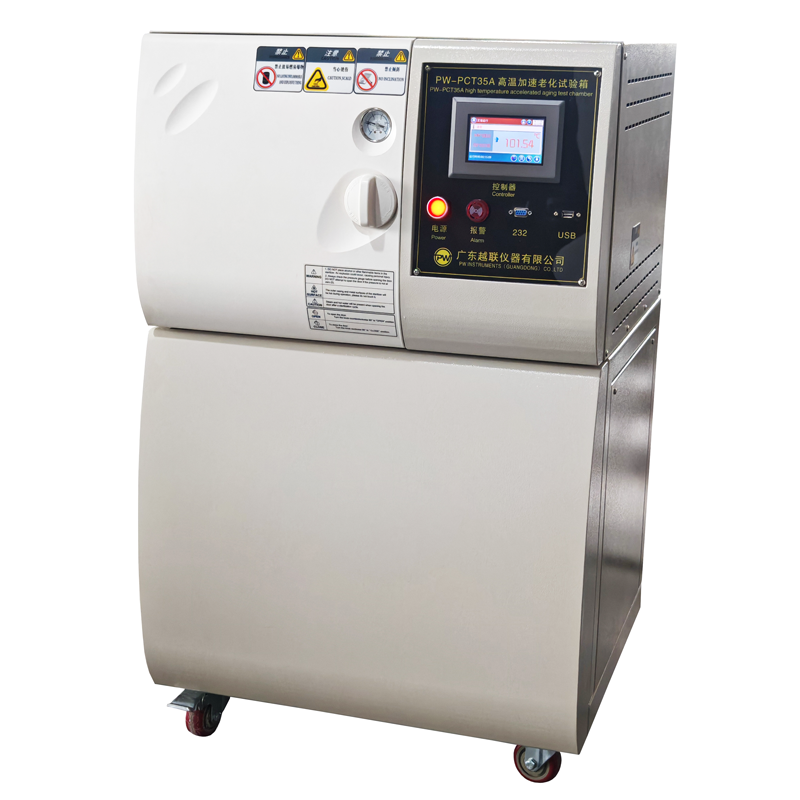

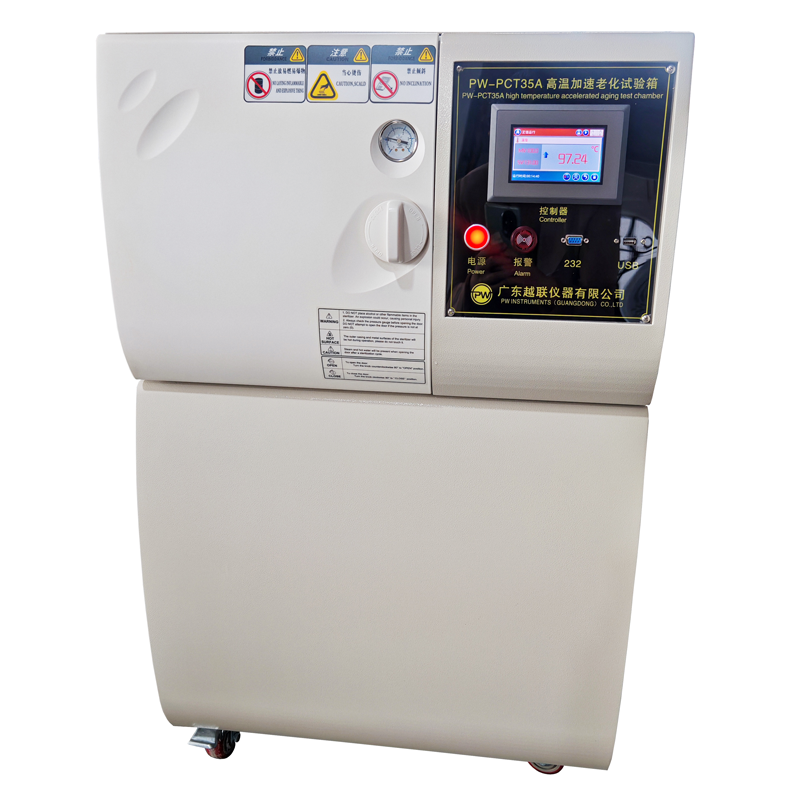

PCT high-pressure accelerated aging test box is used to test the performance test of products in storage, transportation, and use under high temperature, high temperature, high humidity, and pressure climatic environments. It is mainly used for electrical and electronic products, components, parts, and metal materials. Its magnetic materials are tested under the climatic conditions of high temperature, high humidity, and pressure to test the product's physical and other related properties. After the test, the performance of the product can be judged through verification to meet the requirements for product design, Improvement, verification, and factory inspection use.
| Setting temperature | +100 °C to +132 °C (saturated vapor temperature) |
| Humidity range | 100 % saturated vapor humidity |
| Operating pressure | 0.5 Kg ~ 3.0 Kg / cm2 (internal barrel design pressure 4 Kg / cm2) |
| Time range | 000 Hr ~ 999 Hr |
| Pressure time | 0.00 Kg ~ 1.04 Kg / cm2 within 45 minutes |
| Test conditions | temperature 121°C, 100% RH saturated vapour, pressure 1.04 Kg/cm2, temperature 132°C, 100% RH saturated vapour, pressure 2.00 Kg/cm2 |
| Test chamber size | ∮260 mm x L400 mm, round-type test chamber |
| Control method | PLC+HMI |
| Inner barrel material | stainless steel plate material # SUS-304 |
| Outer barrel material | stainless steel or steel plate baking paint |

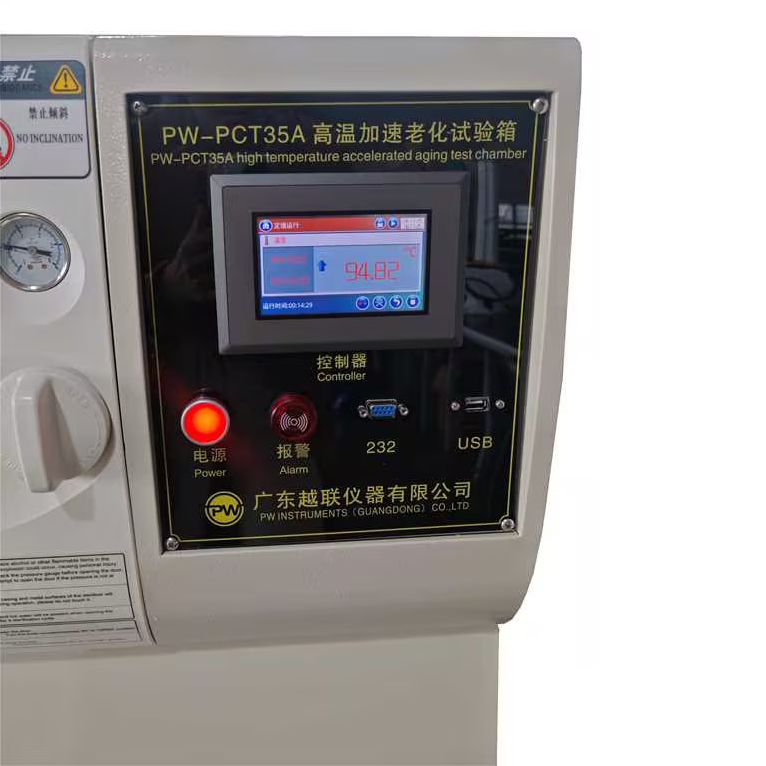

| Control system | a. 7" touch screen microcomputer control of saturated vapor temperature b. Time controller with LED display c. Using pointer display pressure gauge d. Microcomputer P.I.D automatic calculation control of saturated vapor temperature |
| Power supply | Single phase 220V 20A |
