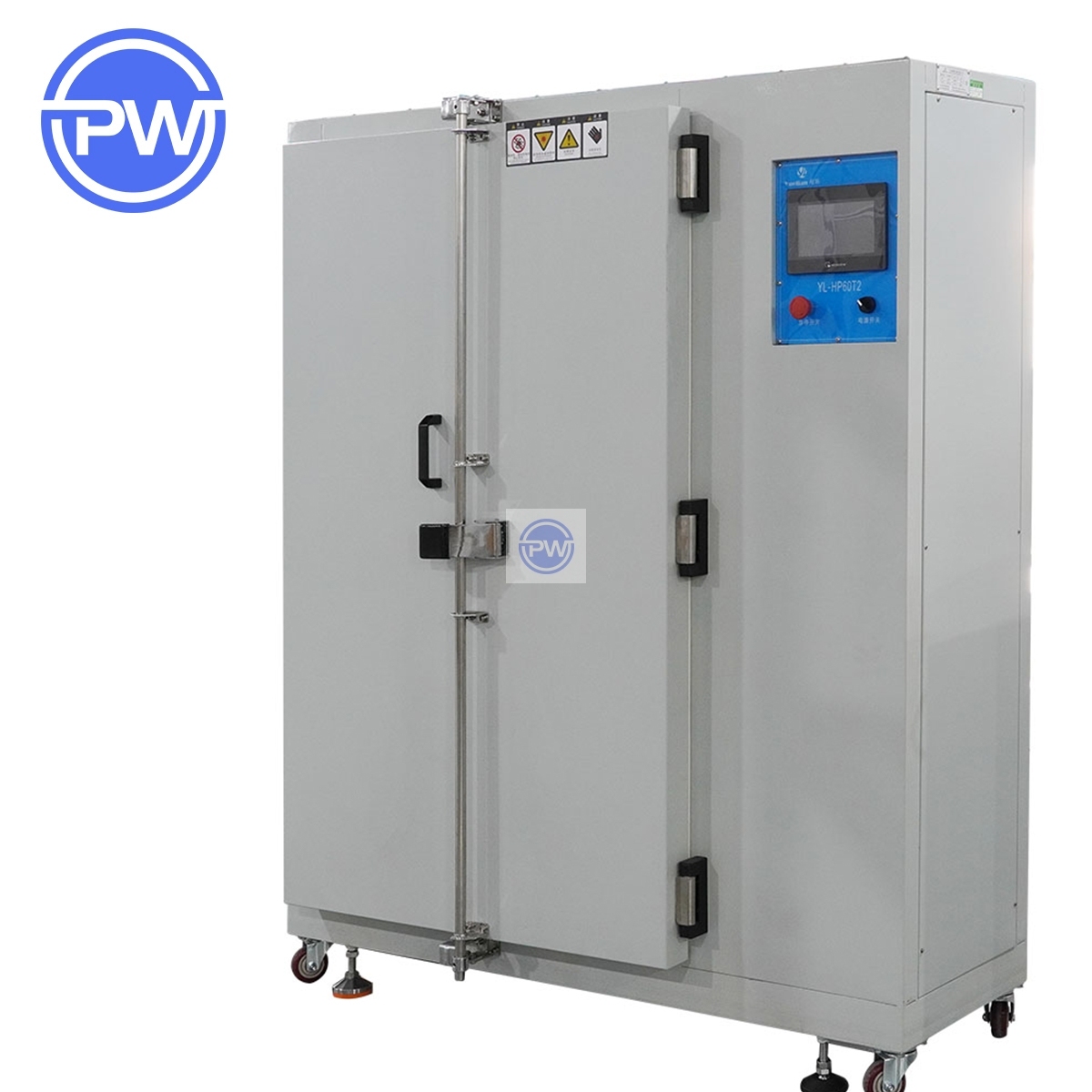

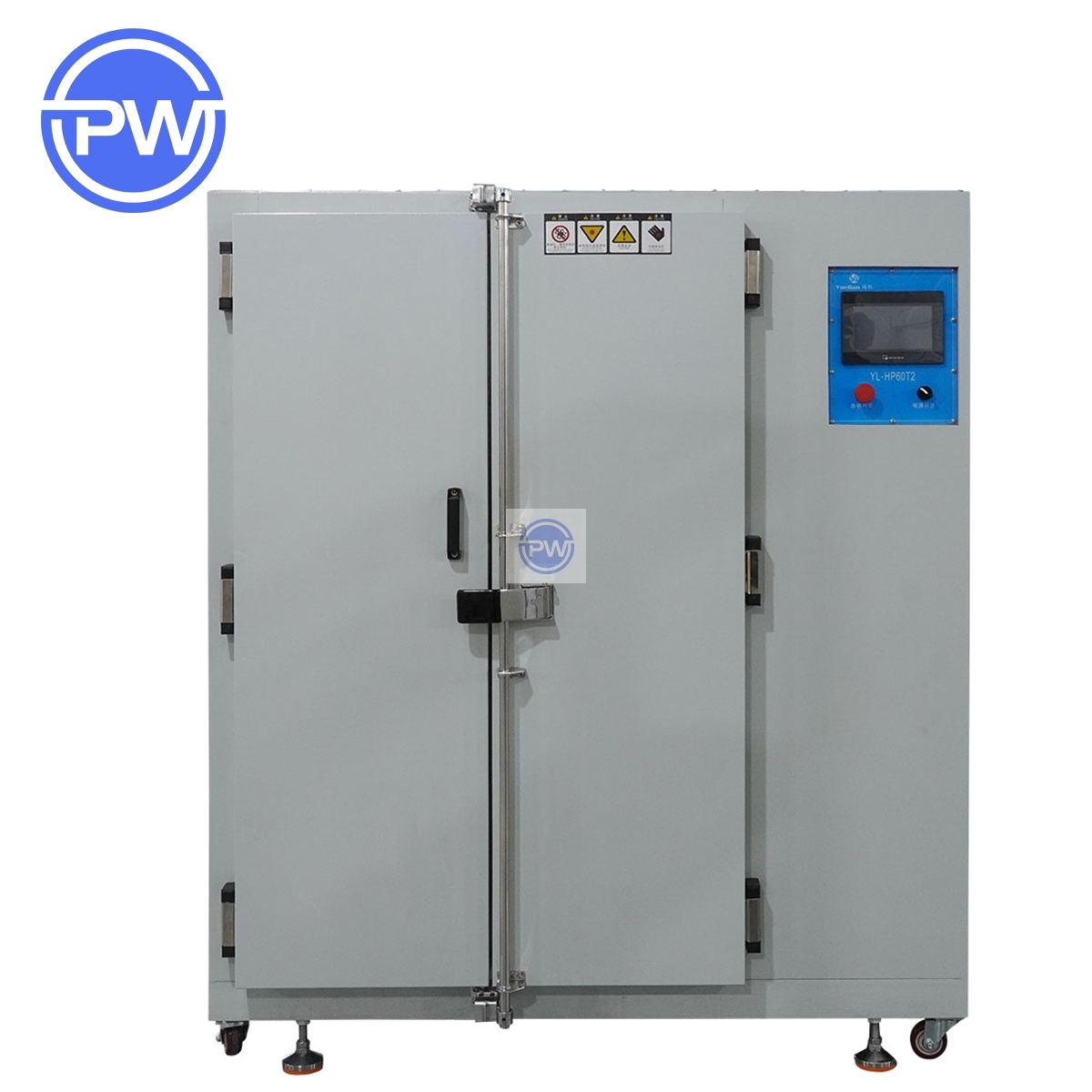

Large Oven

T/T FOB WOOD
CONTACT US
  • Large Oven,Universal testing machine,Tensile tester,Climate test Chamber,test Chamber,Thermal Shock Chamber,PW Instruments
  • Large Oven,Universal testing machine,Tensile tester,Climate test Chamber,test Chamber,Thermal Shock Chamber,PW Instruments
  • Large Oven,Universal testing machine,Tensile tester,Climate test Chamber,test Chamber,Thermal Shock Chamber,PW Instruments

SPECIFICATION

Use

It is  used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratory rooms, scientific research units, etc

Box structure size
1、Inner dimension: 120(W)×120(H)×100(D)±1cm;
2、The controller is located on the top of the machine, the double doors open from right to left；
3、The inner material is mirror stainless steel plate thickness of 1.0mm；
4、The outer material is SECC steel plate thickness ≥1.2mm powder baking paint treatment；
5、The thermal insulation material is 100K high-density glass rock wool with a thickness of 100mm, which has good thermal insulation and maximizes the temperature insulation.

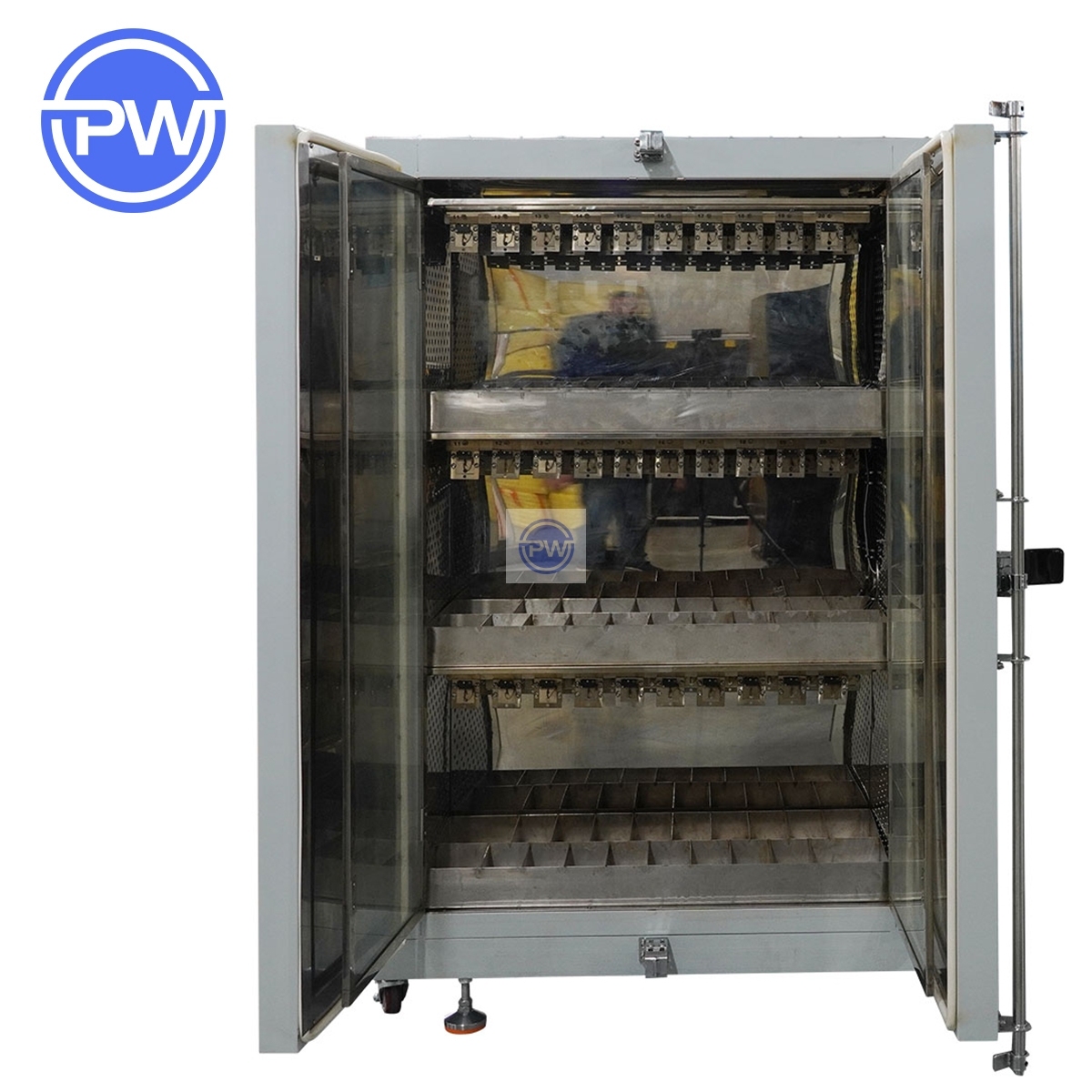

6、There are two layers inside, two stainless steel grids (mesh shape)；
7、The tight material is high temperature resistant silica gel strip；

8、Glassless window;
9、Equipped with movable casters and fixed feet.

Supply unit

Voltage: 380V three-phase    Power: 8KW
