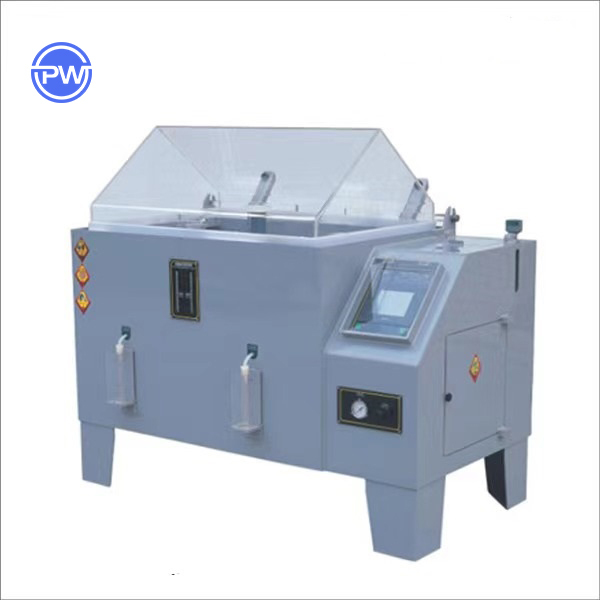

The SAI series salt spray test chamber produced by our company is designed to test the corrosion resistance of the products after electroplating, anode treatment, spraying, anti-rust oil and other corrosion treatments on the surface of various materials; Make analysis and evaluation.
GB/T10125-1997, GB/T10587-2006, GB/T1771-2007, GB10593.2-1990, QB/T 3826-1999 SAI-108,
SAI-270 (features: easy installation and operation, transparent top cover) micro cylinder device;
SAI-480, SAI-800, SAI-1440 enlarged salt spray test chamber (features: precise temperature control, automatic defogging device, uniform fogging)
1. The whole machine is made of P.V.C hard plastic board, which is corrosion-resistant, easy to clean, and has no salt spray leakage.
2. Using a touch screen controller, multiple PID automatic calculations, high control precision, can set the working program, to achieve continuous or intermittent spray test.
3. The upper covers of the 108L and 270L test machines are all made of acrylic transparent top cover, and the top covers of models above 480L are made of hard PVC plastic plates. The upper cover is automatically opened and closed by a large cylinder, which can monitor the spray status and test at any time. Such working conditions.
4. Tower spray system, equipped with a salt liquid filter, no crystallization nozzle, uniform fog distribution, and free adjustment of settlement.
5. The number of samples (150*70mm). For example, 48 pieces can be placed at an angle of 15°, and 32 pieces can be placed at an angle of 30°.
6. After the test is completed, it has an automatic defogging device, which can clearly observe the sample.
7. Spray time: gap/continuous spray can be adjusted arbitrarily, multiple system protection, safe and reliable use.
