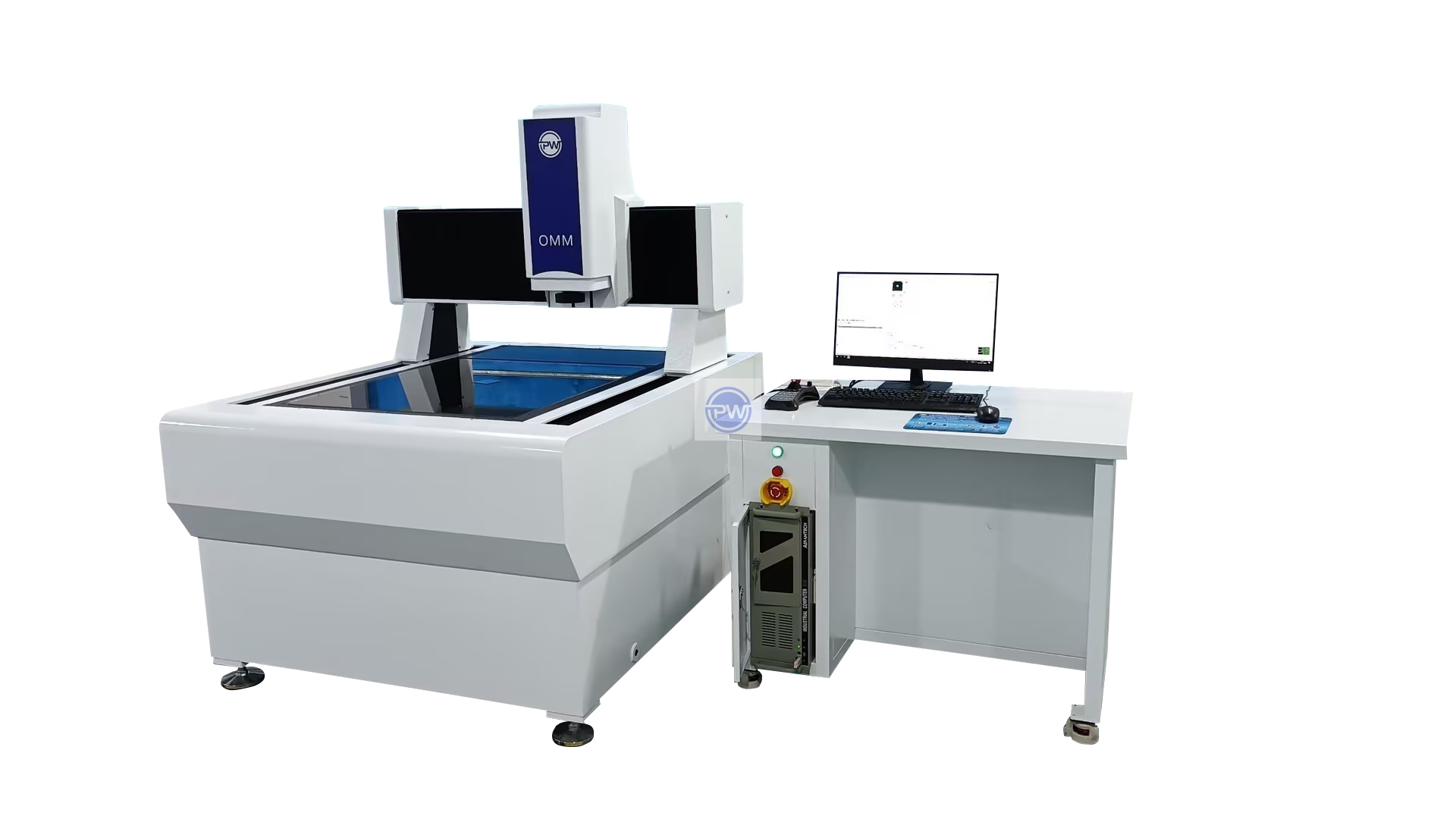

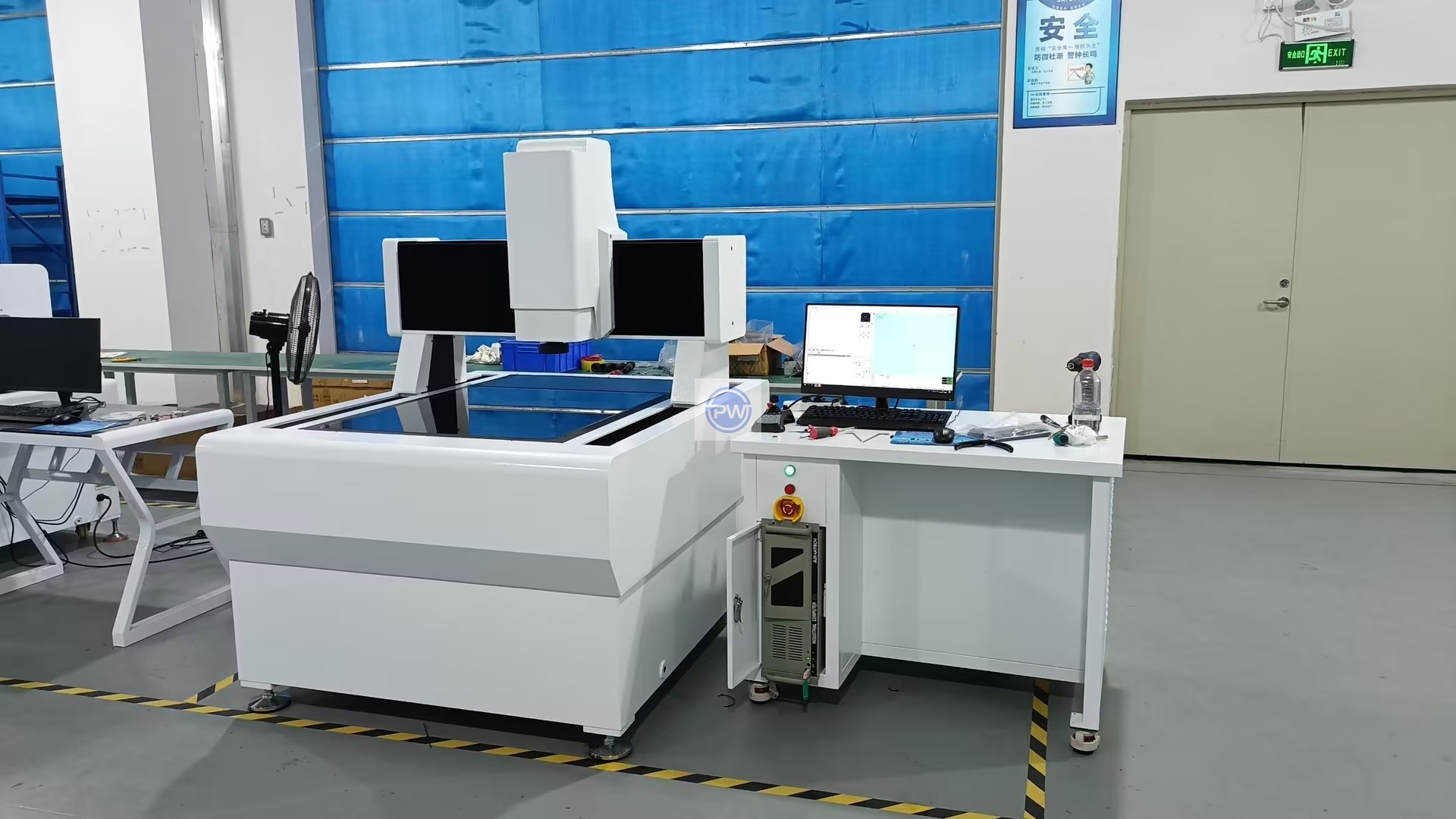

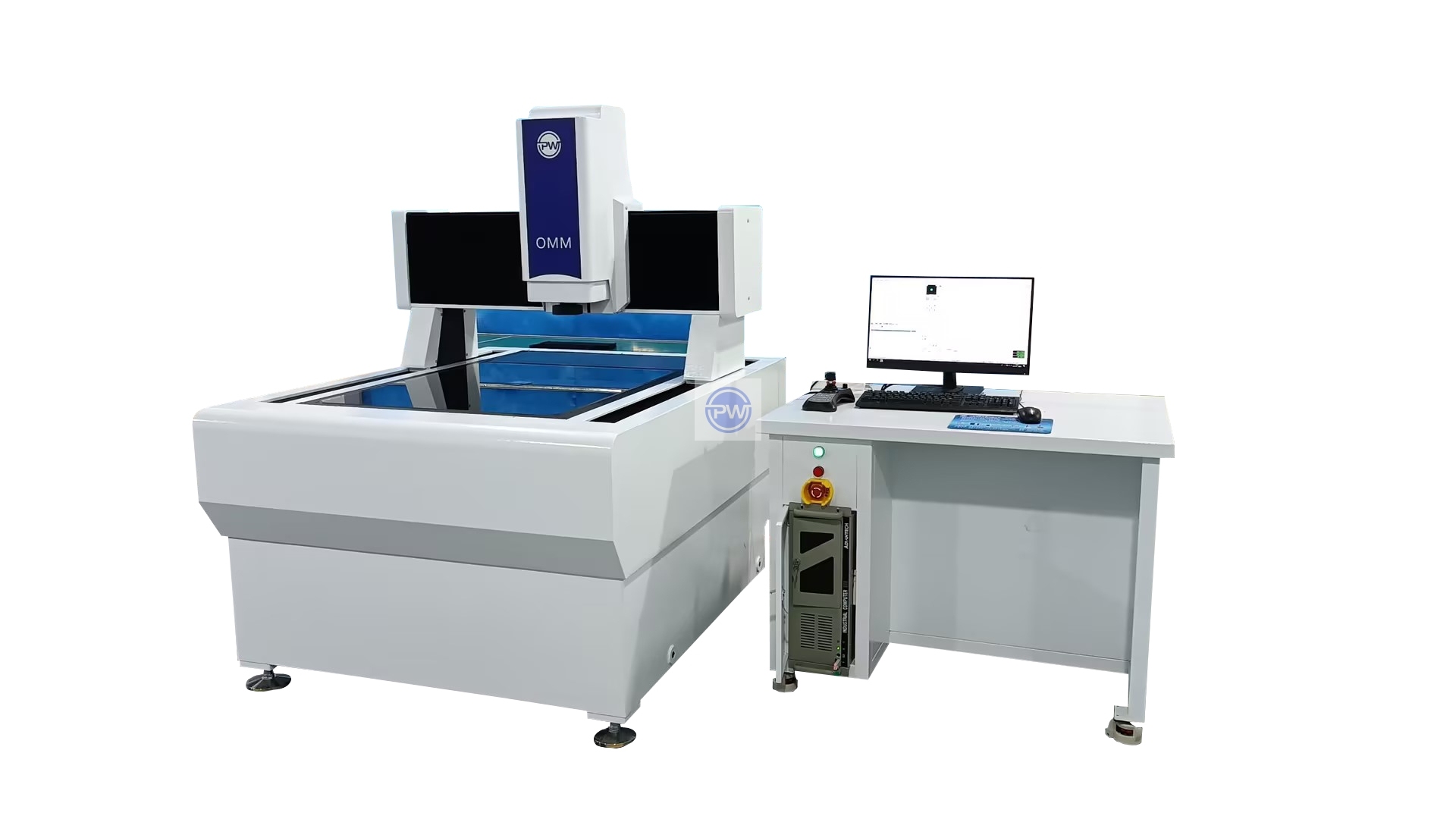

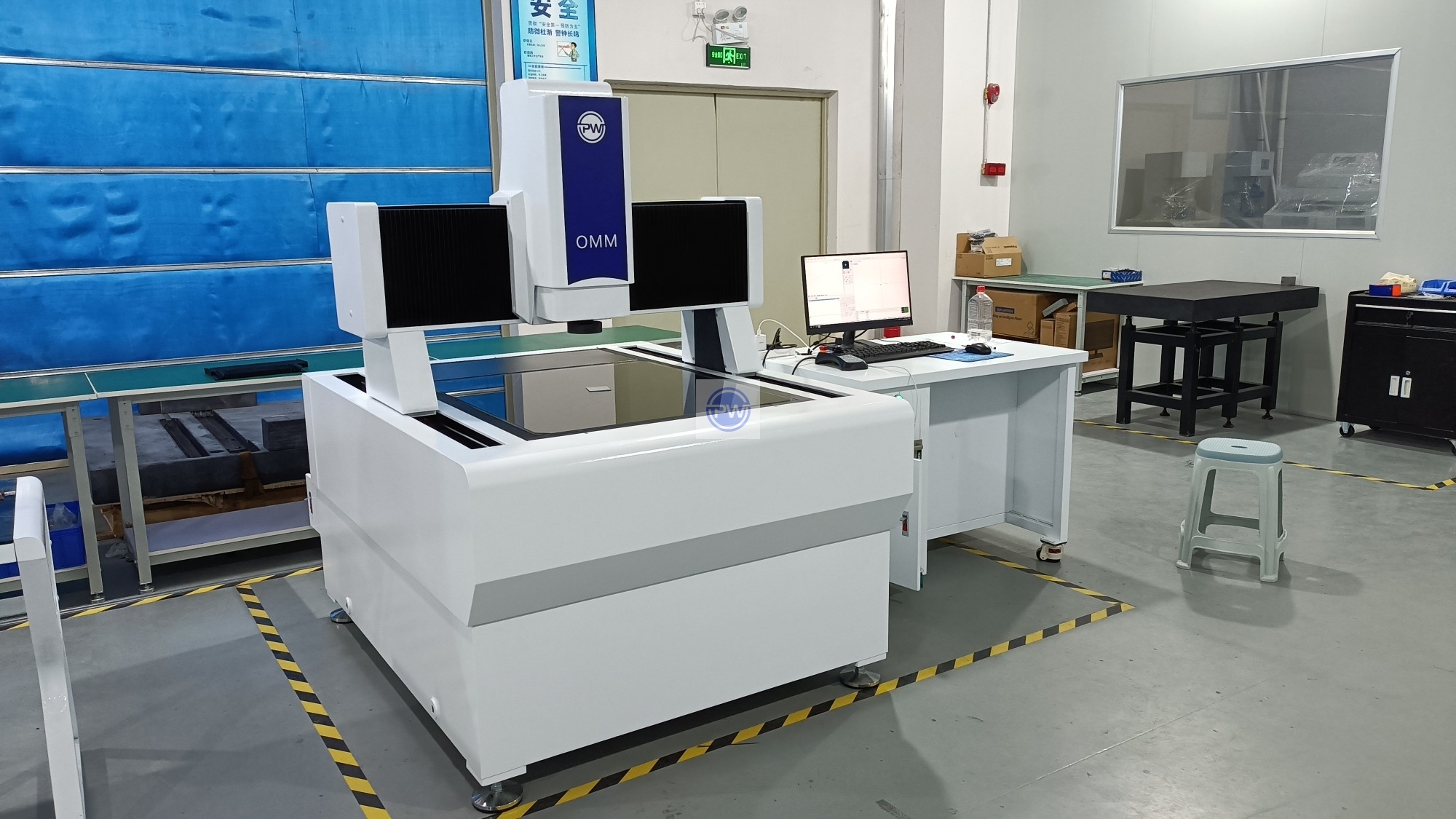

A Fully-Auto Vision Measuring Machine is a precision instrument used for measuring and inspecting various components and objects with a high level of accuracy. It employs advanced optical and imaging technology to capture detailed images of the object under inspection. These machines typically consist of a motorized stage that moves the object in multiple directions, allowing for precise positioning and measurement. The captured images are then analyzed using specialized software, which enables dimensional measurements, surface analysis, and defect detection. Fully-Auto Vision Measuring Machines are widely used in industries such as manufacturing, engineering, quality control, and research and development, where precise and automated measurements are essential for ensuring product quality and consistency.
Product Features:
- Moving gantry structure, the workpiece is fixed;
- Four-axis CNC fully auto close loop control, auto measurement;
- "00" grade marble base and pillar, stable and reliable;
- Import Germany RSF metal linear scale, resolution is 0.1um, high accuracy, great stability;
- Import P-grade linear guide, C5 TBI precision grinding ball screw and Panasonic AC servo motor, ensure accuracy stability of system position;
- Color 1/1.8"global 2 million gigabit network digital CCD camera, ensure clear observation and stable measurement requirement;
- 6.5X Motorized Coaxial zoom lens, precision auto zoom, only need to make pixel calibration once time;
- Programmable 5-ring 8-division 40-segment LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
- O
ptional UK Renishaw touch probe and 3D software for 3D measurement;
- Optional Keyence or Omron Non-Contact Laser sensor to achieve thickness and flatness measuring;
- Standard our self-property right software iMeasuring powerful function and easy operation.
