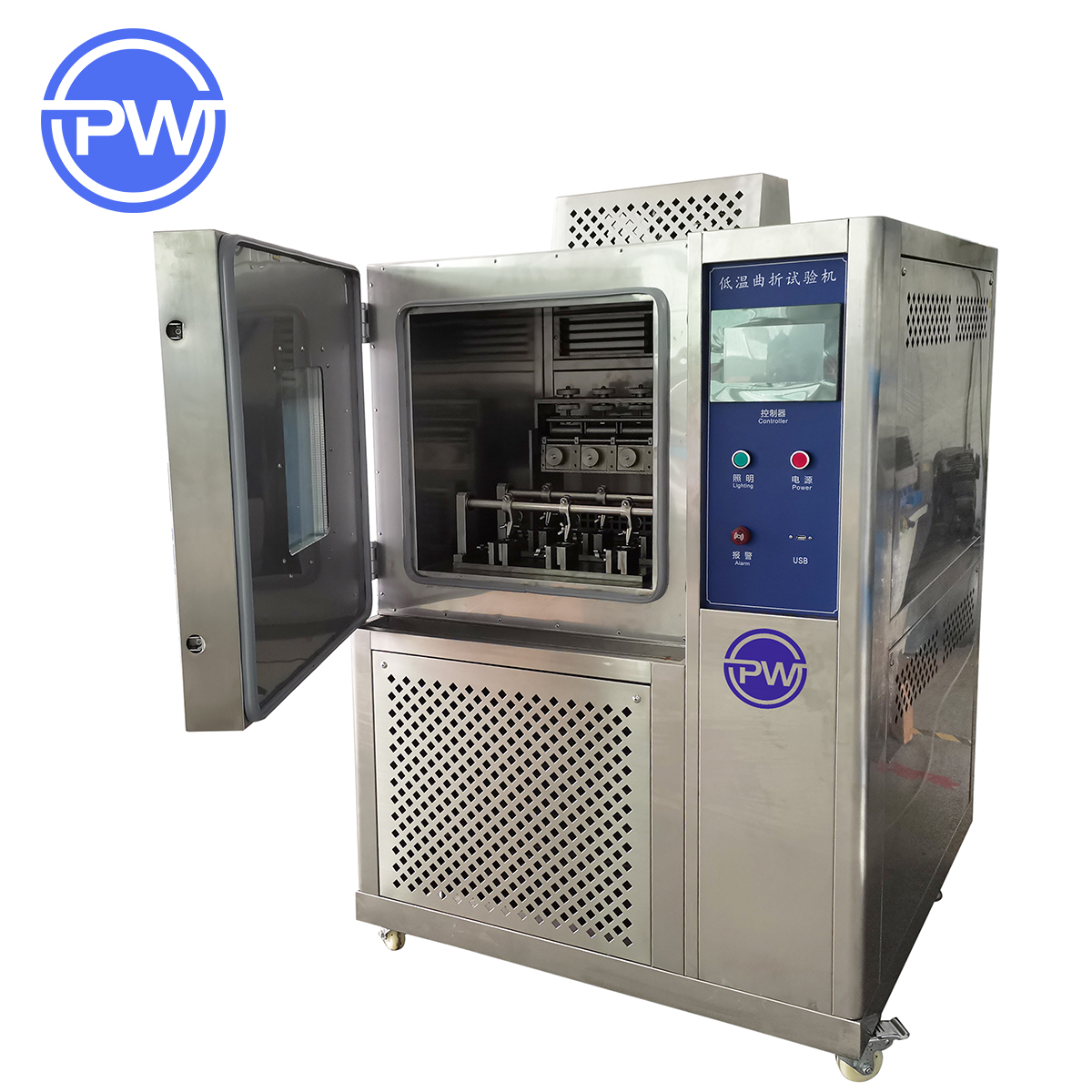

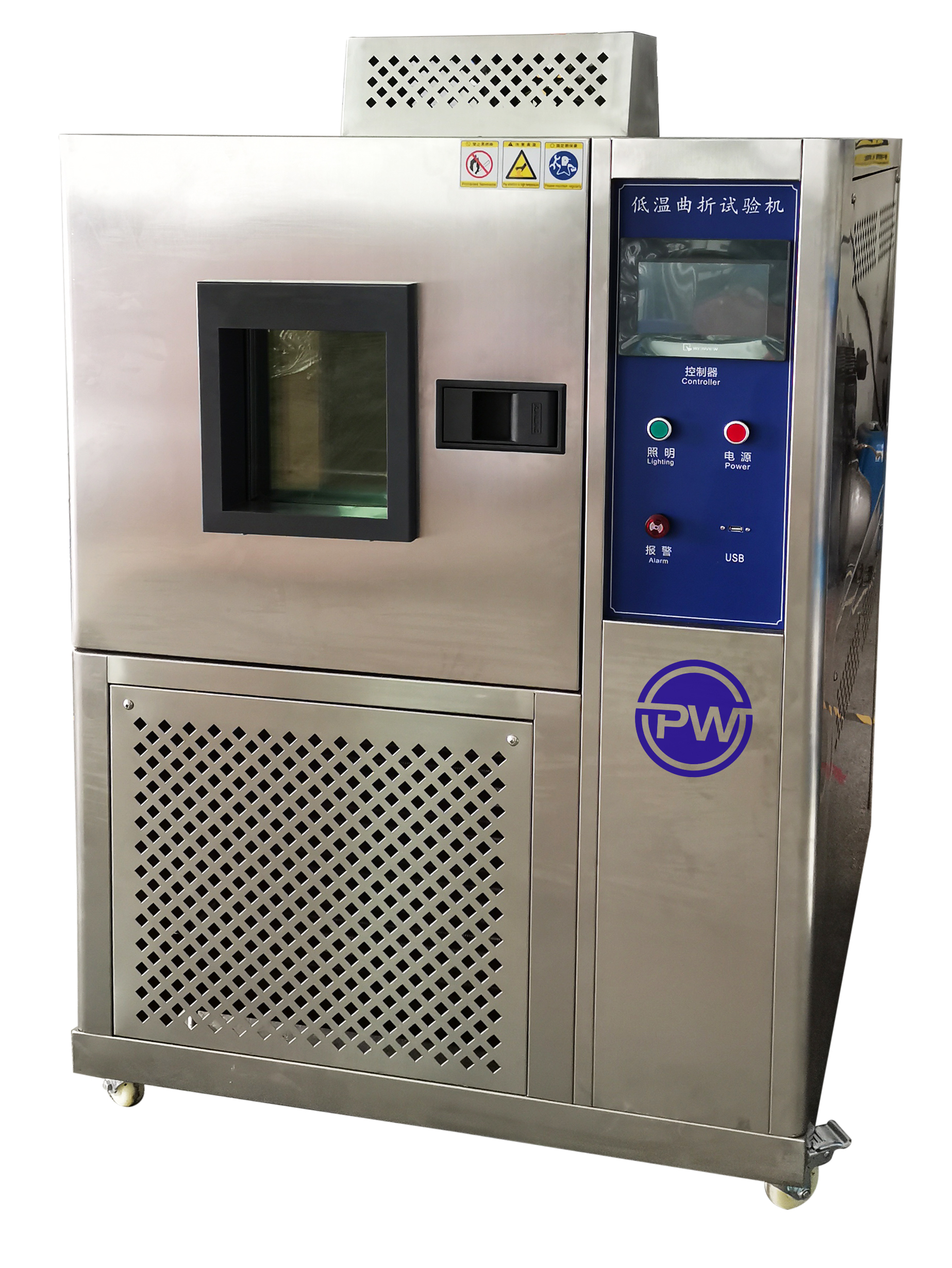

PW-CHL150-40A-FR6 Low-Temperature Flex Resistance Tester
Application:

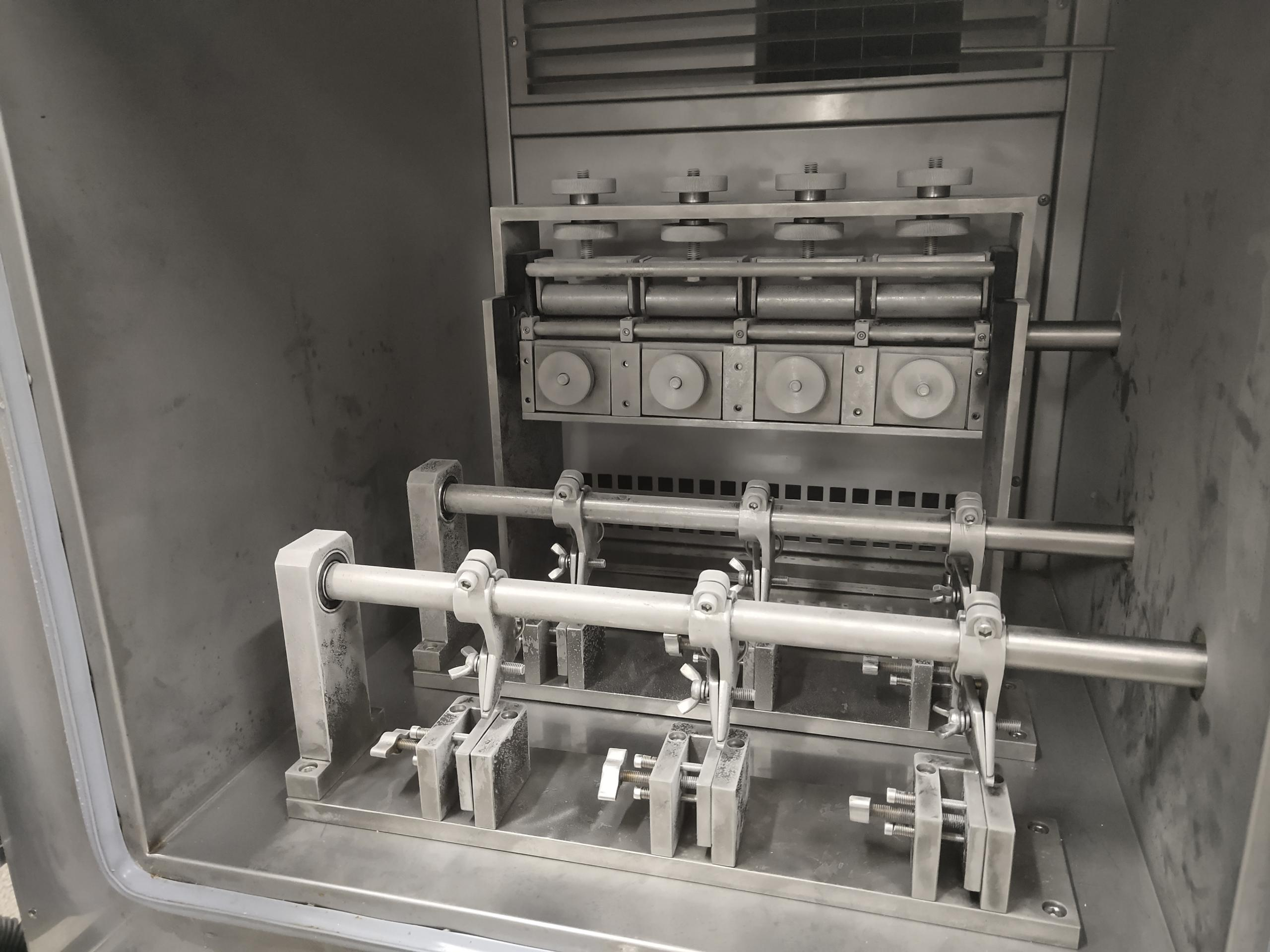

This instrument is mainly used to test the cold resistance and flexing (bending) resistance of materials, in order to evaluate how materials or finished products perform under low-temperature climates or in cold regions. Various flexing test fixtures can be installed inside the chamber of this machine.
Technical Specifications:
1. System: Balanced temperature control system
2. Temperature range: −40 °C to +150 °C
3. Temperature fluctuation: ≤ ±0.5 °C
4. Temperature uniformity: ≤ 2 °C
5. Temperature accuracy: ±0.2 °C
6. Heating time: +25 °C → +85 °C, approx. 30 minutes (no load)
7. Cooling time: +25 °C → −30 °C, approx. 50 minutes (no load)
Standard configuration of test chamber:
1. Viewing window: 320 × 420 × 40 mm, three-layer vacuum tempered glass
2. Specimen size: 70 × 45 mm
3. Flexing angle: 22.5°
4. Number of test stations: 6 sets
5. Flexing speed: 0–100 ±3 cpm, adjustable
Flush-mounted handle design
1. Test capacity: Capable of testing 6 specimen sets simultaneously
2. Interior energy-saving light: LED illumination
3. Heating rate: 3–5 °C/min (average)
4. Cooling rate: 0.7–1 °C/min (average)
5. Inner chamber dimensions: 500 × 500 × 600 mm
6. Overall dimensions: 1040 × 1041 × 1472 mm
7. Packing dimensions: 1150 × 1150 × 1600 mm
8. Power supply: AC 220 V
9. Machine weight: 310 kg
