Use
This product is suitable for testing electrical products, enclosures and seals to ensure good performance of equipment and components in a rainy environment. This product adopts scientific design, so that the equipment can realistically simulate various environments such as dripping, spraying, splashing and spraying. Into the comprehensive control system and the adoption of frequency conversion technology, so that the rotation angle of the rainfall sample rack, the swing angle of the water spray pendulum and the swing frequency of the spray water can be automatically adjusted.
Structure and measures
There are standard test options in the equipment program, and users can choose the required standard test items to test without setting; there is also a custom test option, users can set test data by themselves to adapt to different test standards; the stage turntable can Tilt 150, automatically change the test position to meet the tilt requirements of the IPX2 test, so that the user can automatically complete the test operation without stopping the switch during the IPX2 test, while ensuring the reliability and accuracy of the test data.

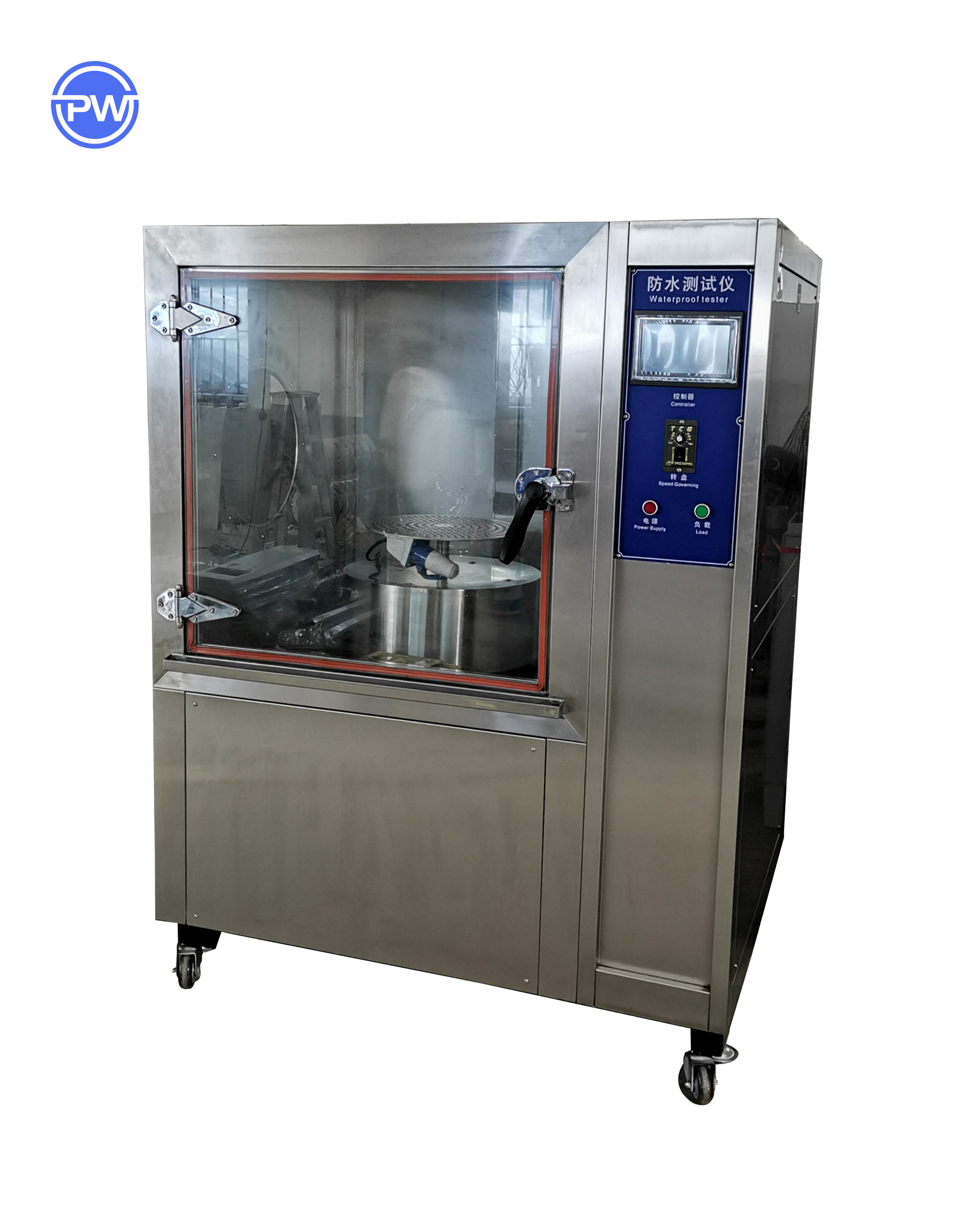

This complete set of equipment consists of a vertical drip test machine, a swing tube rain test machine, a hand-held shower head, a hand-held nozzle (ф6.3, ф12.5), an intelligent water supply system, a tiltable rotating stage, and a comprehensive control cabinet.
Anti-blocking technical measures:
Stainless steel fine filter for dirt filtration.
Use compressed air to dry the water in the needle to prevent the water from reacting with substances in the atmosphere to block the needle.
The stainless steel universal medical needle nozzle is used, which is convenient to purchase and not easy to rust.
The needle tip and the needle tip seat are connected by taper, which can be easily replaced without tools, and the individual damaged needle tip can be easily and quickly replaced.
Anti-blocking technical measures:
Stainless steel fine filter for dirt filtration.
Use compressed air to dry the water in the needle to prevent the water from reacting with substances in the atmosphere to block the needle.
The stainless steel universal medical needle nozzle is used, which is convenient to purchase and not easy to rust.
The needle tip and the needle tip seat are connected by taper, which can be easily replaced without tools, and the individual damaged needle tip can be easily and quickly replaced.
Safety protection device
1. Power overload and short circuit protection
2. Grounding protection
3. Water shortage protection
4. Alarm prompt
