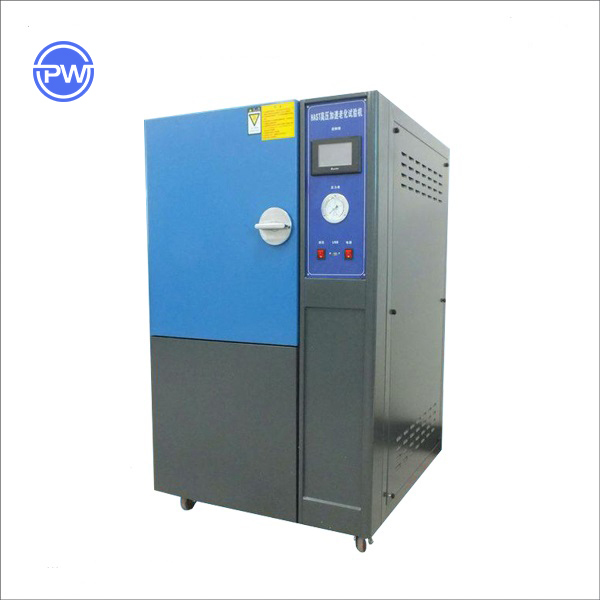

PCT High Pressure Accelerated Aging Test Chamber

a. Outer wall material: stainless steel plate SUS304#; thickness: 1.2mm.
b. Inner wall material: stainless steel plate SUS304#; thickness: 3.0mm
c. Box insulation material: glass fiber.
d. Door insulation material: fiberglass.
e. Round inner box, stainless steel round inner box structure, in line with industrial safety standards, can prevent condensation and dripping during the test.
f. The arc liner, stainless steel arc type liner design, can avoid the direct impact of steam overheating.

g. Precise design, good airtightness, low water consumption, and continuous operation for 999H every time the automatic water is added;
h. Automatic access control, back pressure type non-external force flat door, automatic temperature and pressure safety detection, automatic access control lock control system, advanced safety door handle design (door handle is safer without force), test door when the inner box has greater than normal pressure Will be protected by back pressure and cannot be opened; protect the safety of operators.
i. Patented packing, when the pressure of the inner box is greater, the packing will have back pressure to make it more closely integrated with the box body, which is different from the traditional extrusion type that depends on external force from the outside to the inside. When the pressure inside the box is 1Kg/ When cm2, the box door will suck inward with a suction of 1Kg/cm2 to achieve a sealing effect; when the pressure in the box is 2Kg/cm2, the box door will suck inward with a suction of 2Kg/cm2 to achieve a sealing effect ; The tightness of the box door is completely determined by the pressure inside the box, so as to better protect the box door and prolong its life.
j. Before the start of the experiment, the equipment will automatically extract the unsaturated air from the original inner box, so that each test can ensure that the test sample is completed in a saturated vapor environment to ensure the consistency of the test results.
