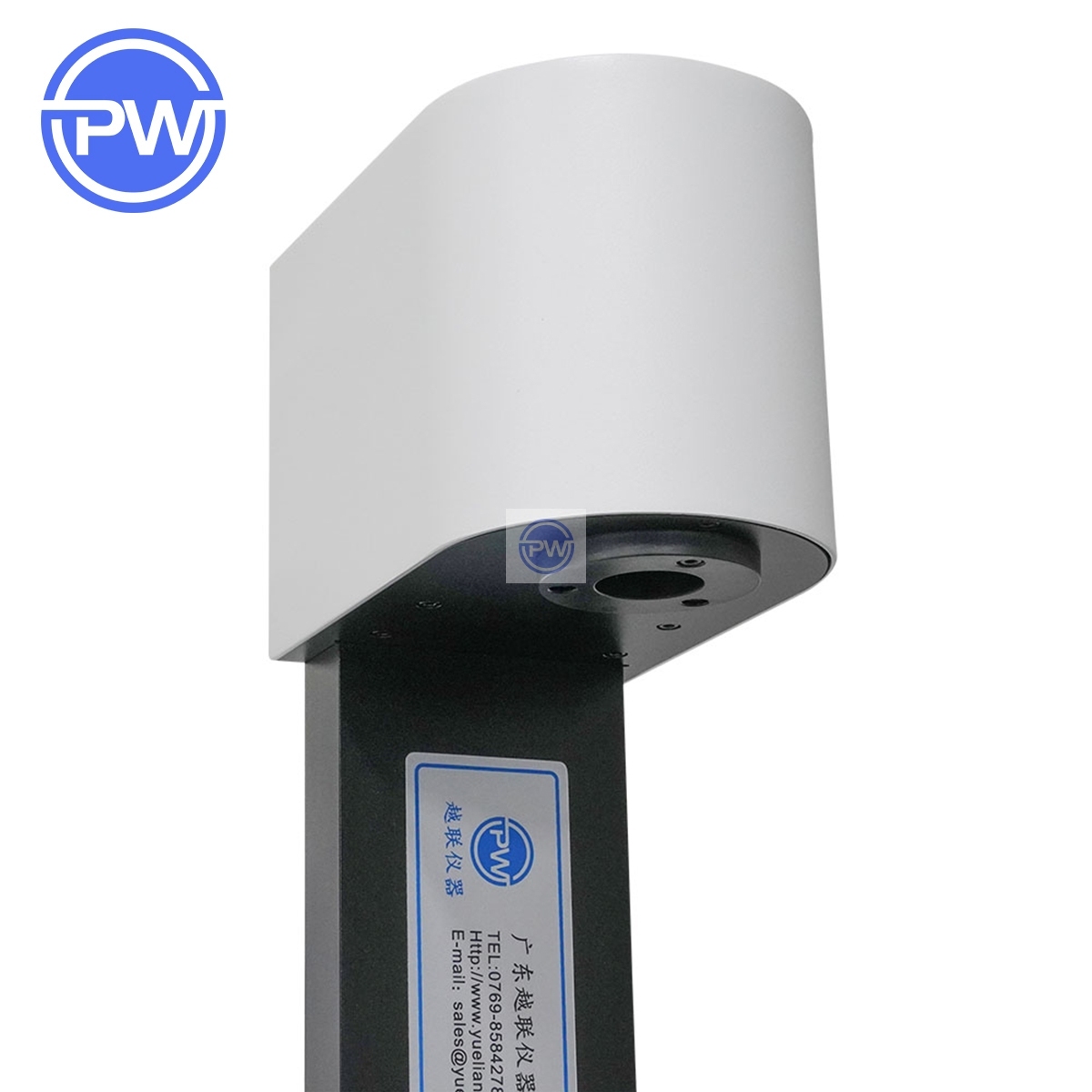

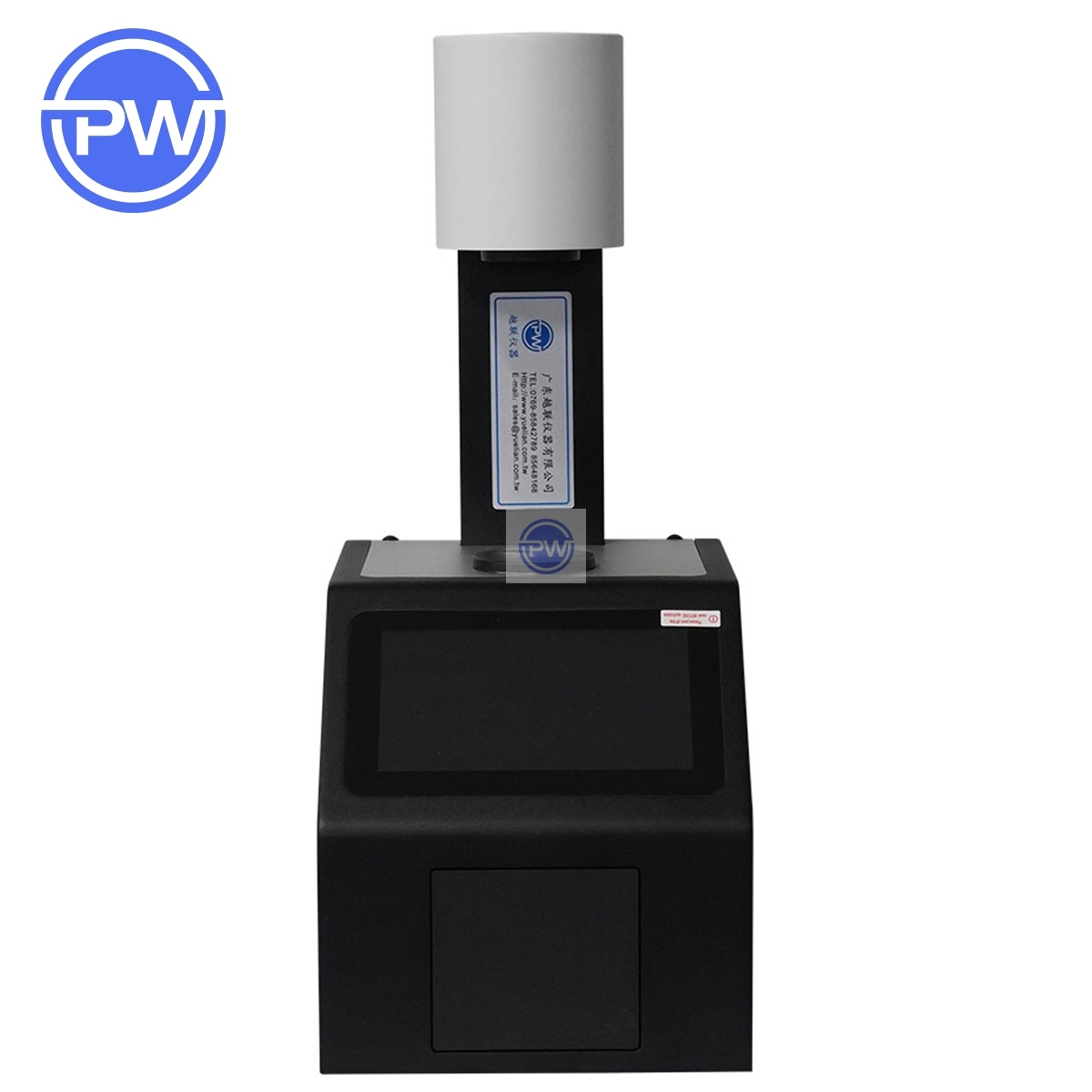

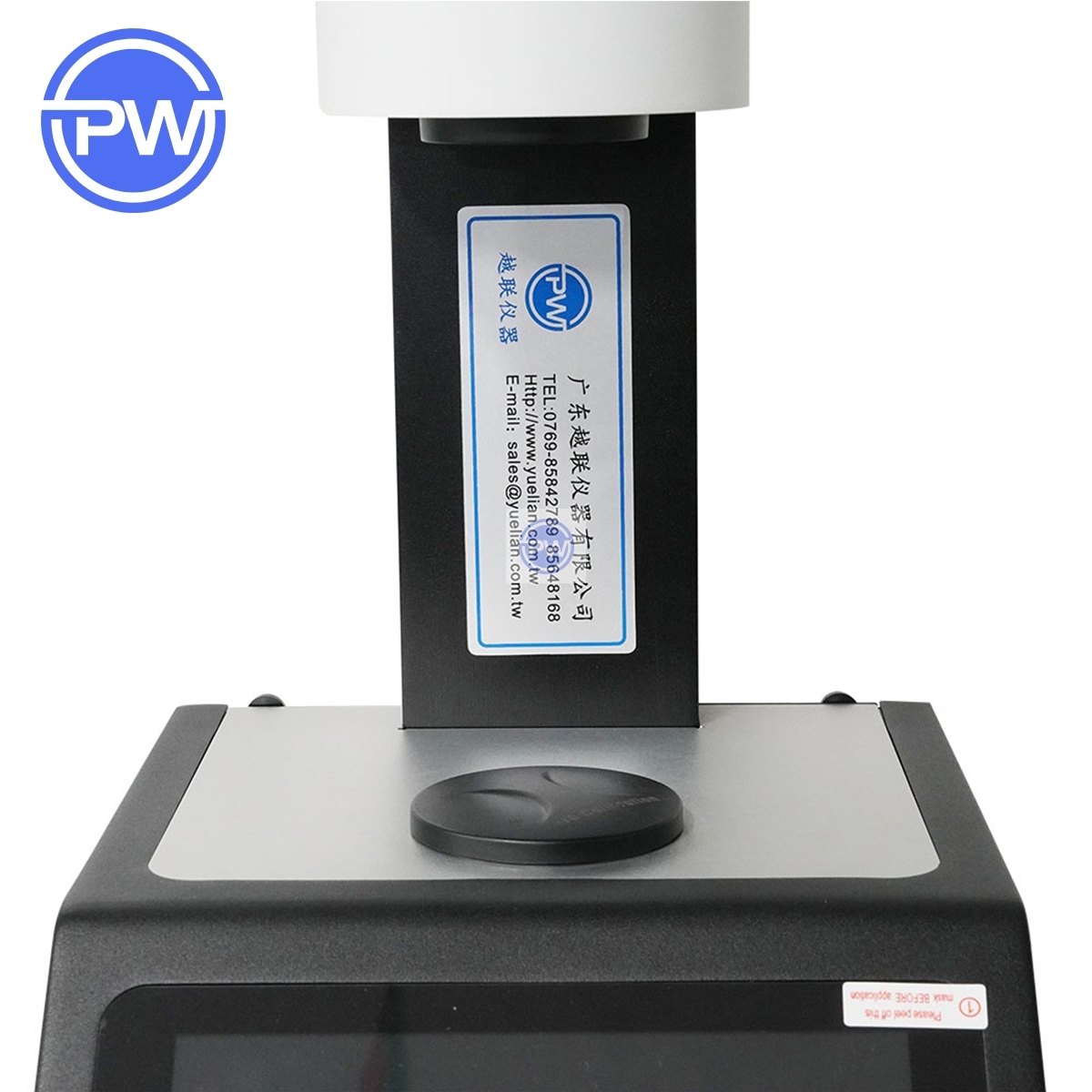

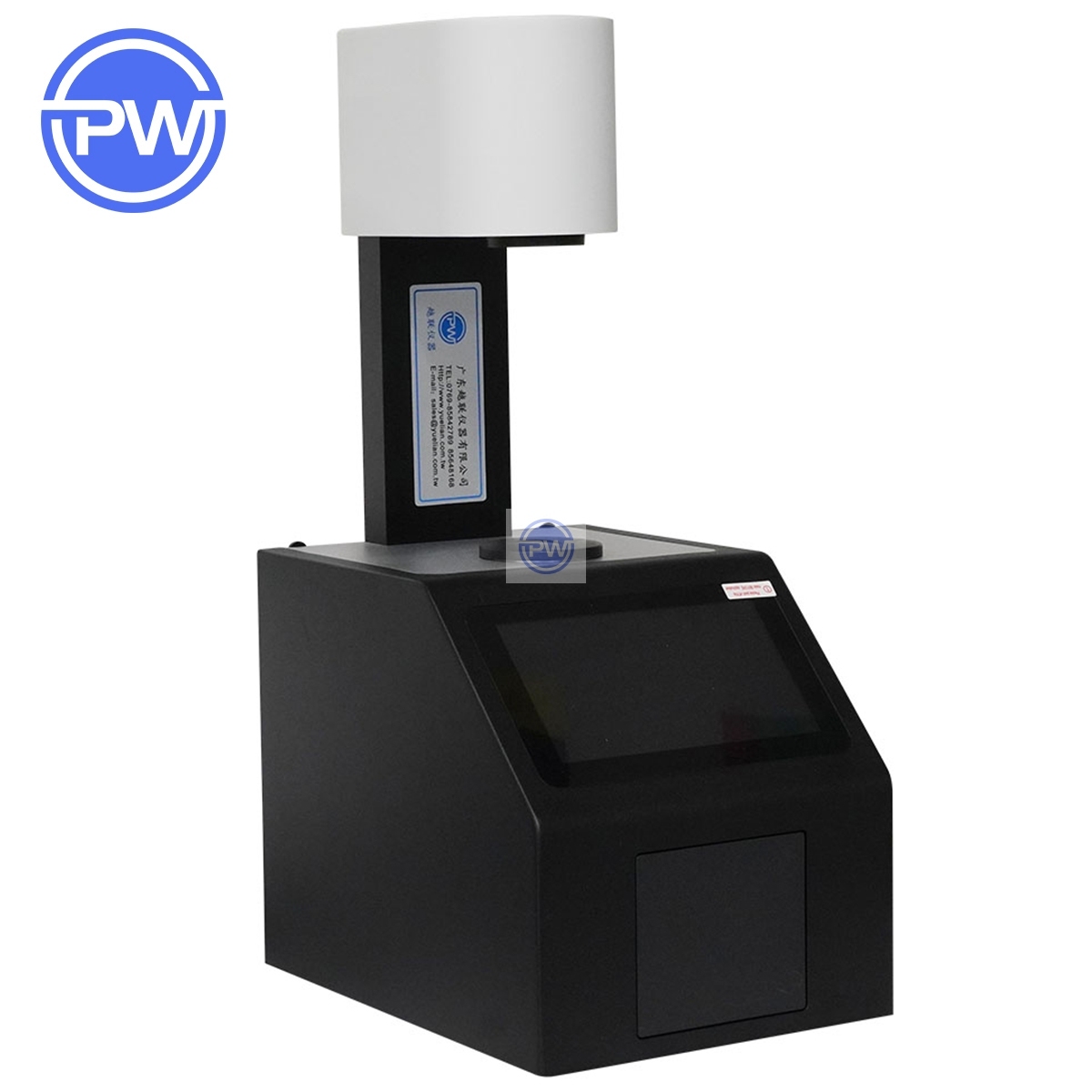

| Model | YH1100 |
| Lighting Method | Transmission: 0/D (parallel light illumination, diffuse reflection reception) |
| Integrating sphere size | φ154mm |
| The first source of lighting | 400-700nm combined LED light source |
| Sensor | Array detector, meeting CIE V(λ) 2-degree visual response |
| Measurement Wavelength Range | 400~700nm (wavelength can be expanded and customized) |
| Transmittance measurement range | 0-100% |
| Measuring aperture | φ20mm/φ15mm/φSmm/φ4mm (select a single diameter) |
| Sample size | Thickness less than 170mm |
| Other chromaticity indicators | Haze (ASTM 01003/1044, ISO 13468), transmittance T (ASTM) |
| Observer's point of view | 2° |
| Observation light source | D65,A,C |
| Display | Pass/Fail Results |
| Measure time | About 1.5s |
| Haze resolution | 0.01 unit |
| Haze repeatability | Diameter of φ20mm, less than 0.1 |
| Difference between stations | Diameter of φ20mm, less than 0.4 |
| Size | Length X width X height = 290X211X511mm |
| Weight | About 7.6kg |
| Power Supply | DC 24V, 3A power adapter power supply |
| Lighting Source Life | More than 3 million measurements in 5 years |
| Display Screen | TFT true color 7inch, capacitive touch screen |
| Interface | USB, serial port for printing |
| Storing data | 1000 standard samples, 20000 samples |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating temperature range | 0-40°C (32-104°F) |
| Storage temperature range | -20-50°C (-4-122°F) |
| Standard accessories | Power adapter, manual, quality management software (blind network download), data cable, 0% calibration box, measuring caliber |
| Optional accessories | Micro printer, test fixture, standard haze sheet, footswitch |
