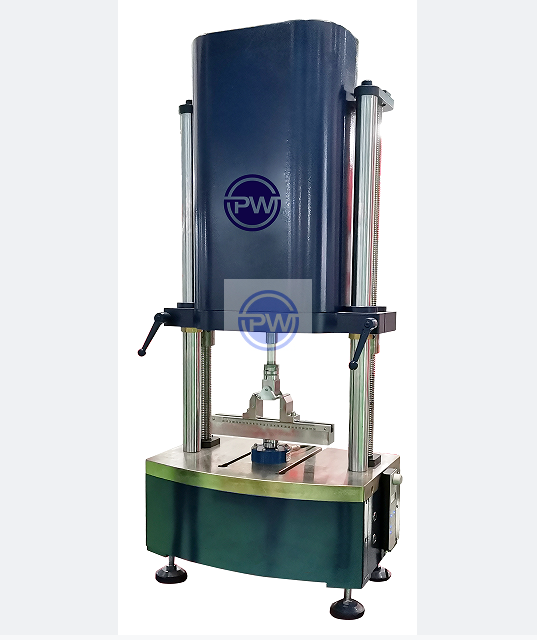

Material Fatigue Compression Testing Machine

Application:
The microcomputer-controlled fatigue testing machine is in accordance with national standards required for the test specification design and manufacture of special fatigue mechanics testing equipment, can be in a certain amount of deformation or under a certain load tensile, compressive force to test the fatigue life of the material. By the microcomputer control automatically complete the entire cycle of the test specimen testing process, can detect the force value of the material decay performance parameters and can print out the test report. Users can adjust the test procedure according to the actual needs in use, the operation is extremely convenient.

Features:
1, Servo actuator and driver (single channel):
The effective stroke of the actuator is 50mm, with a high-precision digital displacement sensor, and the buffer zone is designed at the limit position of the amplitude of the actuator to avoid damage caused by uncontrolled operation.
The actuator system adopts a gap elimination device, automatic centering of force value, reducing lateral force, reducing the impact of high-frequency tensile test, and effectively improving the test waveform.
2, Data acquisition and control system:
Composed of a single-channel all-digital dynamic and static servo controller, computer and software, and accessories.
3, High-precision load sensor:
Adopt high precision load sensor with 120% overload capacity. Placed in the front of the actuating piston, with a self-locking nut. The sensor is calibrated before leaving the factory.
