SPECIFICATION
Product Description:

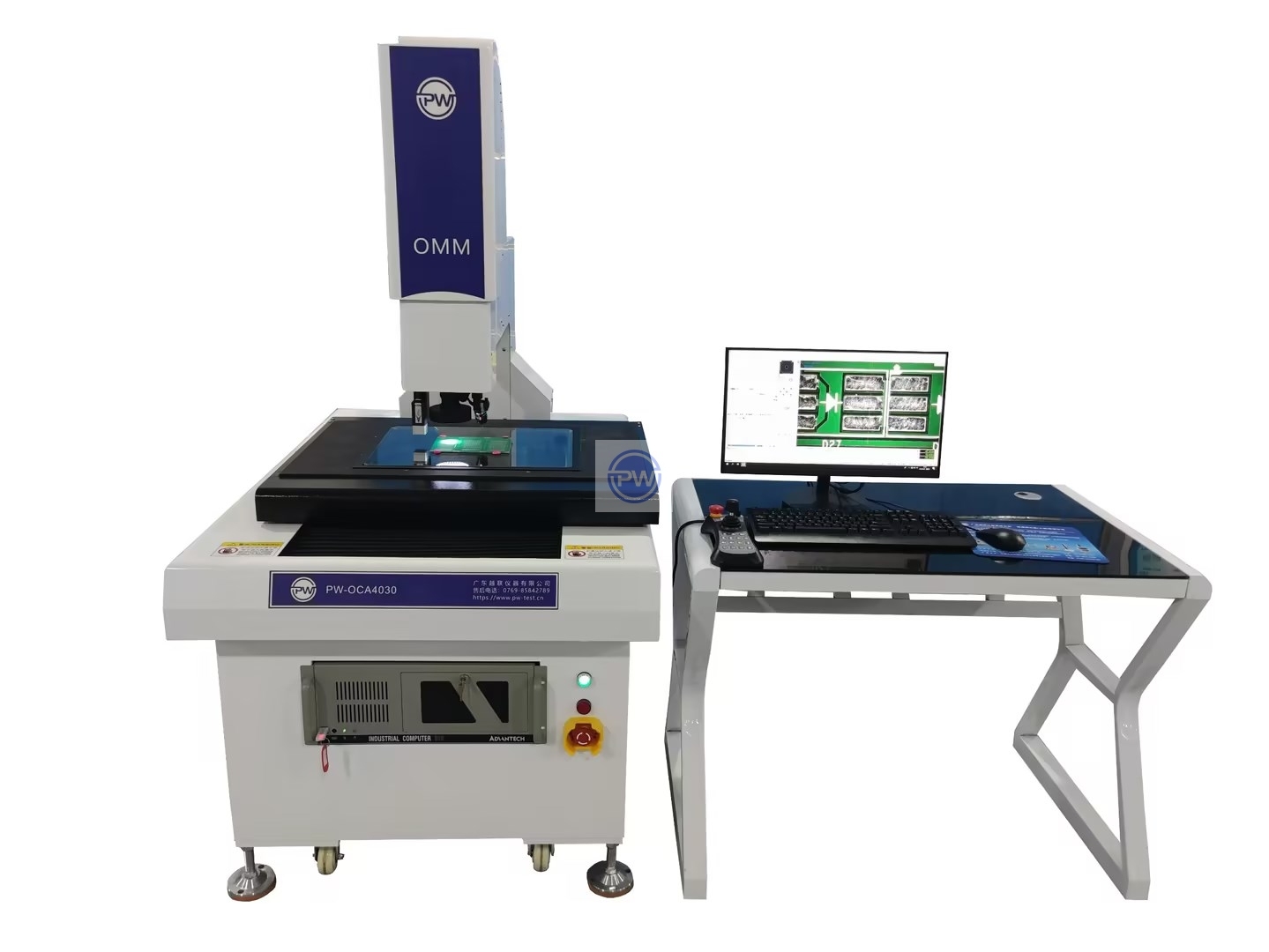

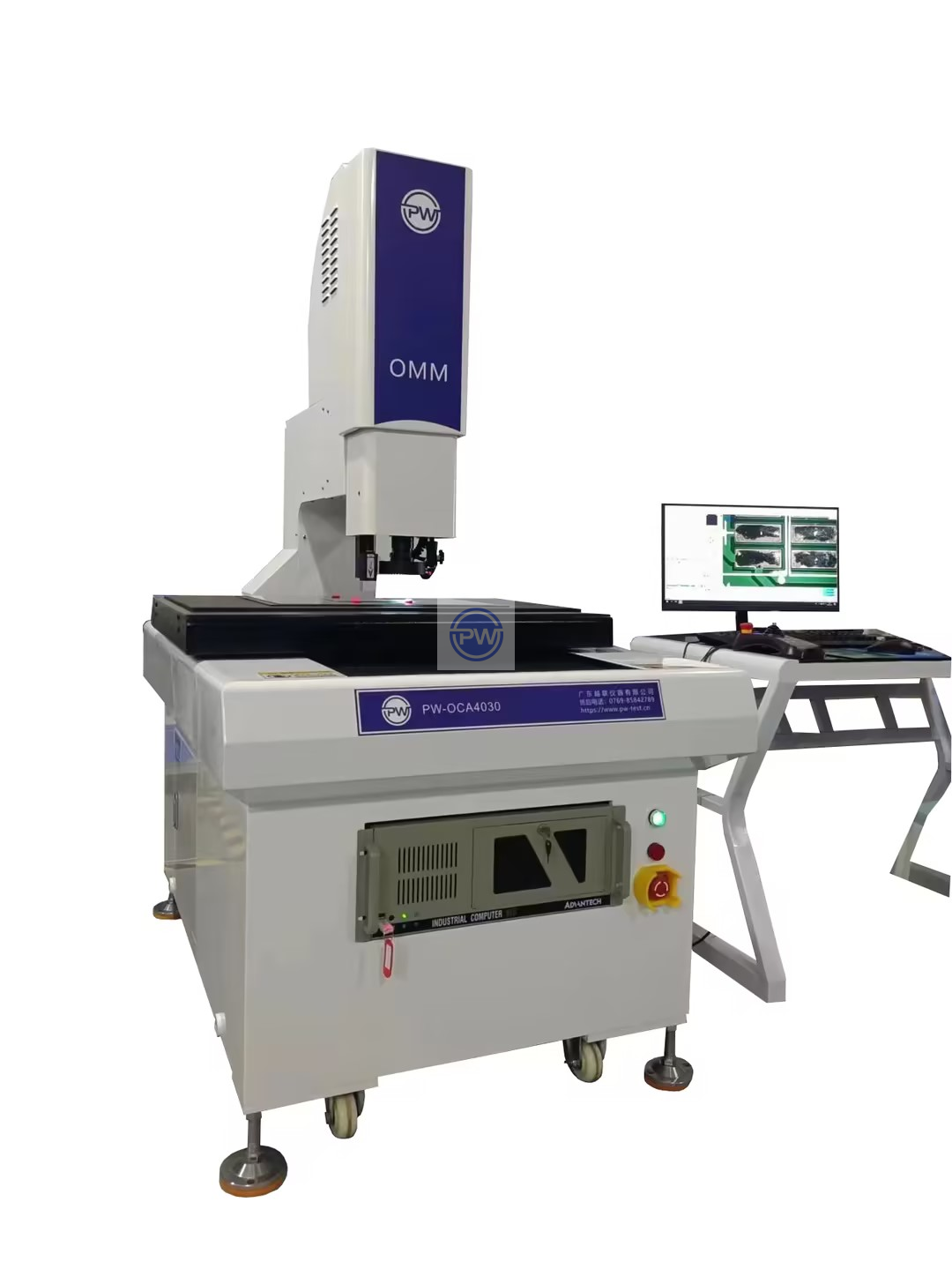

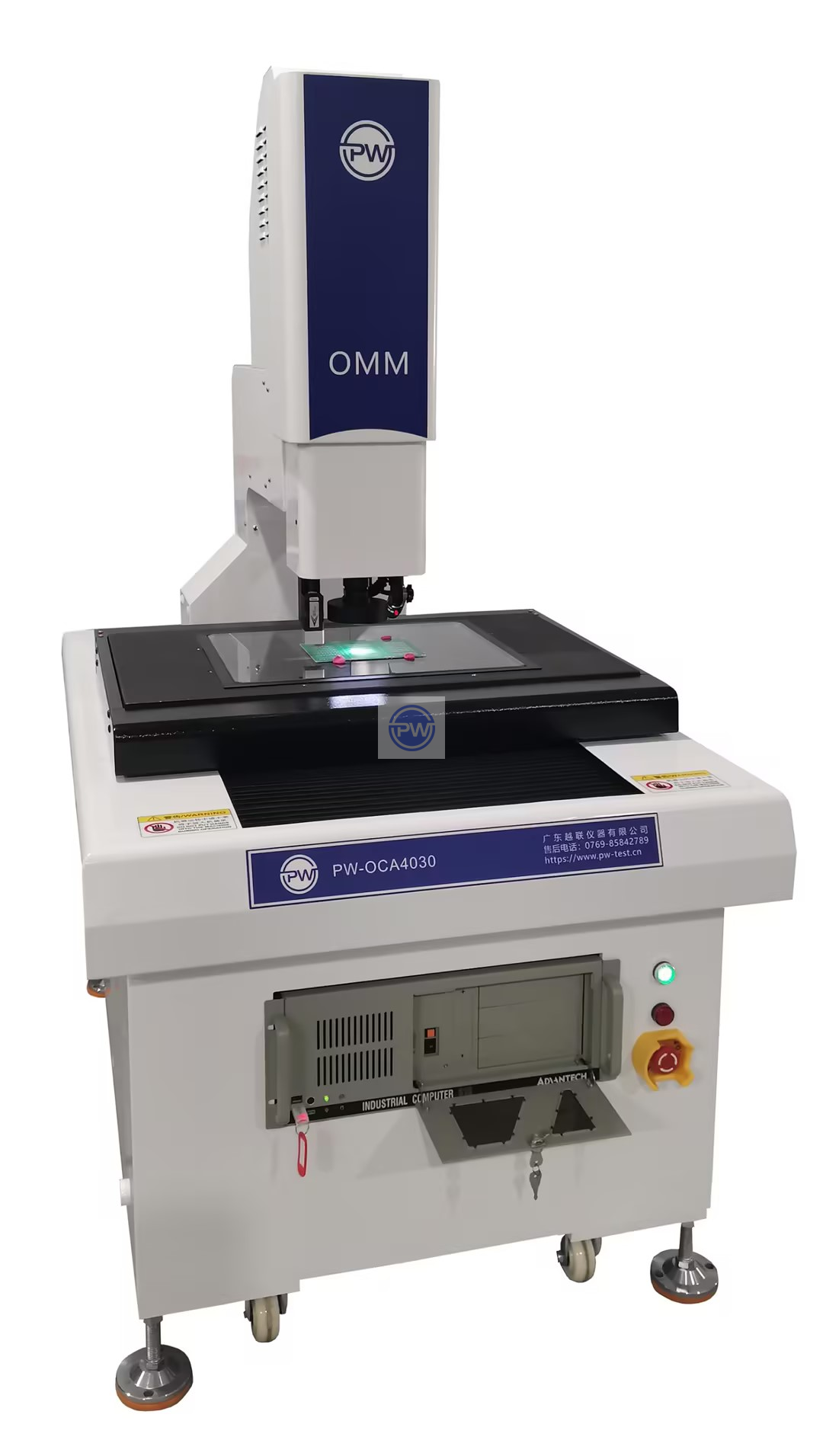

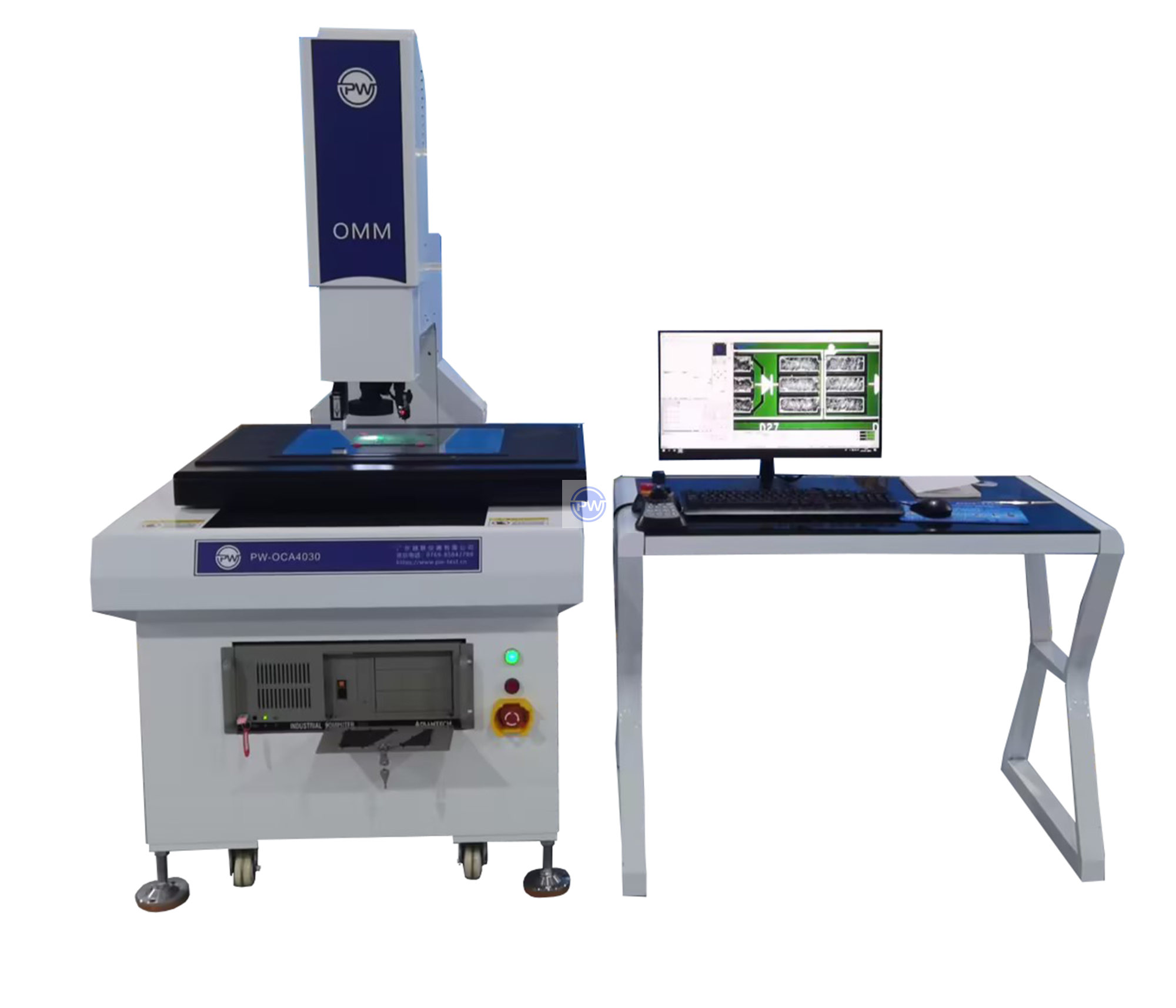

PW-OCA4030 is a high-precision mobile cantilever type fully automatic image measuring instrument designed for high precision and dimensional measurement. Our cantilever structure image measuring instrument is an artificially intelligent modern optical non-contact measuring instrument developed on the basis of the digital image measuring instrument. The fully automatic image-measuring machine inherits the excellent motion accuracy and motion control performance of the digital instrument and incorporates the user-friendly design of the machine software, belonging to today's cutting-edge optical dimensional inspection equipment.
Product Features：
Hardware:
1 One-piece working machine, stable and atmospheric, high security and reliability, with double patent for appearance and structural design, imitation must be investigated.
2 Marble material base, good stability, strong structural rigidity.
3 0.0001mm high precision scale; double-layer table structure can reduce the mechanical assembly error, precision linear slide rail, fully guarantee the X, Y, Z three axes of travel linear accuracy and X-Y plane of travel plane accuracy.
4 structure patent technology, easy to adjust the table, X, Y direction of verticality error close to 0.003mm, no need to do angle compensation to achieve high measurement accuracy; marble column verticality and after the assembly of the "one to one" repair, to ensure that either side of the Z axis and the X-Y plane verticality error absolute value ≤ 0.001um/10mm.
5 Enclosed design of the whole machine, strong wrapping, only the upper table is moving, high safety at work, easy to operate and more ergonomic.
6 Precision ball screw drive, servo motor and driver, with self-developed full closed-loop motion controller can achieve perfect linear differential function, X, Y can reach the target position at the same time, fast and accurate positioning. Smooth movement, low noise and fast response.
7 The table glass is optically ground to a flatness of less than 15um and the Z-axis is specially adjusted to ensure the perpendicularity of the Z-axis stroke and the table glass.
8 Light source: LED three-ring, eight-zone surface ring light + bottom parallel backlight, programmable control, can provide a variety of lighting combinations to meet different lighting needs.
9 Optional coaxial navigation lens option, field of view up to 40mm, can quickly find the current measurement position, making the measurement work more convenient and fast.
