Use
This machine can be used for the 3-point/4 point resistant, compression, bending, stretching test of various metals, rubber, plastics, glass, display, materials and products.
Instructions

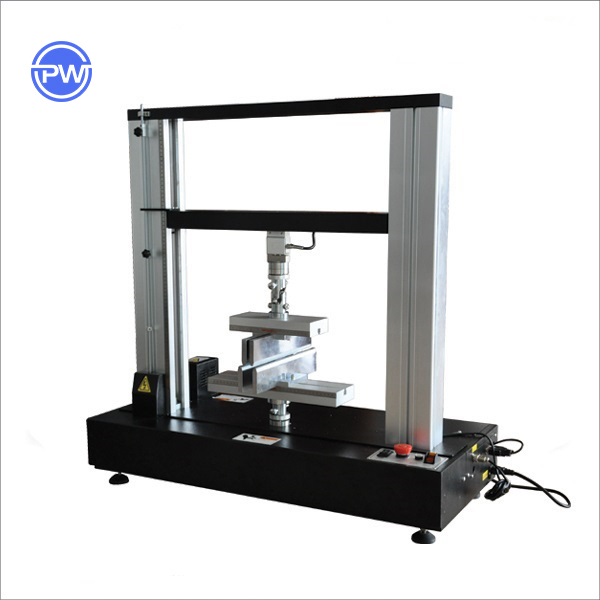

The 3-point/4 point resistant testers machine is suitable for bending test of metal, nonmetal and composite materials. The three-point resistant test meets GB/T1449-2005 and GB/T9341-2008 test methods and standards, and the four-point resistant test meets ASTM D6109-2010 test methods and standards. It can also carry out tensile, compression, shear, tear, peel and other mechanical properties tests.It can automatically detect the maximum force value, yield force value, breaking force value, maximum deformation and yield elongation of the material.According to GB, JIS, ASTM, DIN and other standards, the bending strength, bending modulus, tensile strength, yield strength, breaking strength, maximum elongation, yield elongation, breaking elongation, constant elongation stress, constant stress elongation, elastic modulus and other parameters can be calculated automatically.
Software functions
Measurement and control system is specially designed for microcomputer electronic universal testing machine, microcomputer hydraulic universal testing machine and microcomputer press.It can be used for tensile, compression, bending, shearing, tearing and stripping tests.PC and interface board are used to collect, save, process and print test results.The maximum force, yield force, average stripping force, maximum deformation, yield point, elastic modulus and other parameters can be calculated.Curve processing, multi-sensor support, graphical interface, flexible data processing, MS-Access database support, make the system more powerful.
According to the standard
ISO 7500-1 , JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2, BS1610,GB T228
